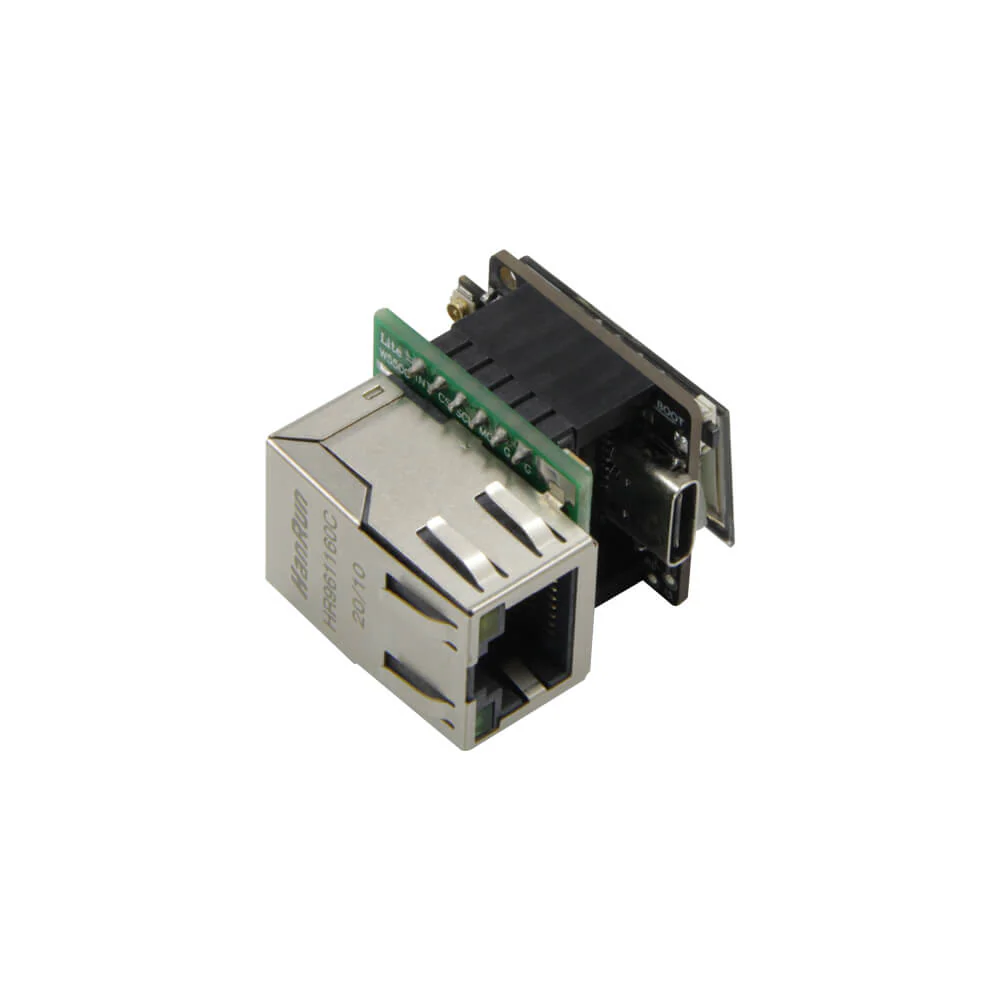

T-Lite W5500
T-Lite W5500 can be used in conjunction with IOT gateway products
Specifications
|
Hardware |
|
|
Chipset |
ESP32 |
|
FLASH |
4MB |
|
SRAM |
520 kB SRAM |
|
Button |
Boot,Reset |
|
On-board clock |
40MHz crystal oscillator |
|
Display |
SSD1306 / 0.96 Inch Oled |
|
Antenna |
Onboard ceramic antenna(Used by default) / Expandable antenna interface |
|
Working voltage |
2.7V-3.6V |
|
Working temperature range |
-40℃ ~ +85℃ |
|
Size |
29.5*23*8MM |
|
Weight |
4.5g |
|
Power Supply |
|
|
Power Supply Input |
USB 5V/1A |
|
USB |
Type-C |
|
Wi-Fi |
Description |
|
Standard |
FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (esp32 chip) |
|
Protocol |
802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
|
Frequency range |
2.4GHz~2.5GHz(2400M~2483.5M) |
|
Transmit Power |
22dBm |
|
Communication distance |
300m |
|
Bluetooth |
|
|
Protocol |
Meet bluetooth v4.2BR/EDR and BLE standard |
|
Radio frequency |
With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
|
Audio frequency |
CVSD&SBC audio frequency |
|
Software |
|
|
Wi-Fi Mode |
Station/SoftAP/SoftAP+Station/P2P |
|
Security mechanism |
WPA/WPA2/WPA2-Enterprise/WPS |
|
Encryption Type |
AES/RSA/ECC/SHA |
|
Firmware upgrade |
UART download/OTA（Through network/host to download and write firmware） |
|
Software Development |
Support cloud server development /SDK for user firmware development |
|
Networking protocol |
IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
|
User Configuration |
AT + Instruction set, cloud server, android/iOSapp |
|
OS |
FreeRTOS |
Technology Support [Github]
If you need technical support please check the link to find more details.
T-Lite W5500
Size
Pin Diagram
Details
T-Lite CH9102F
1 X T-Lite
2 x Female Pin

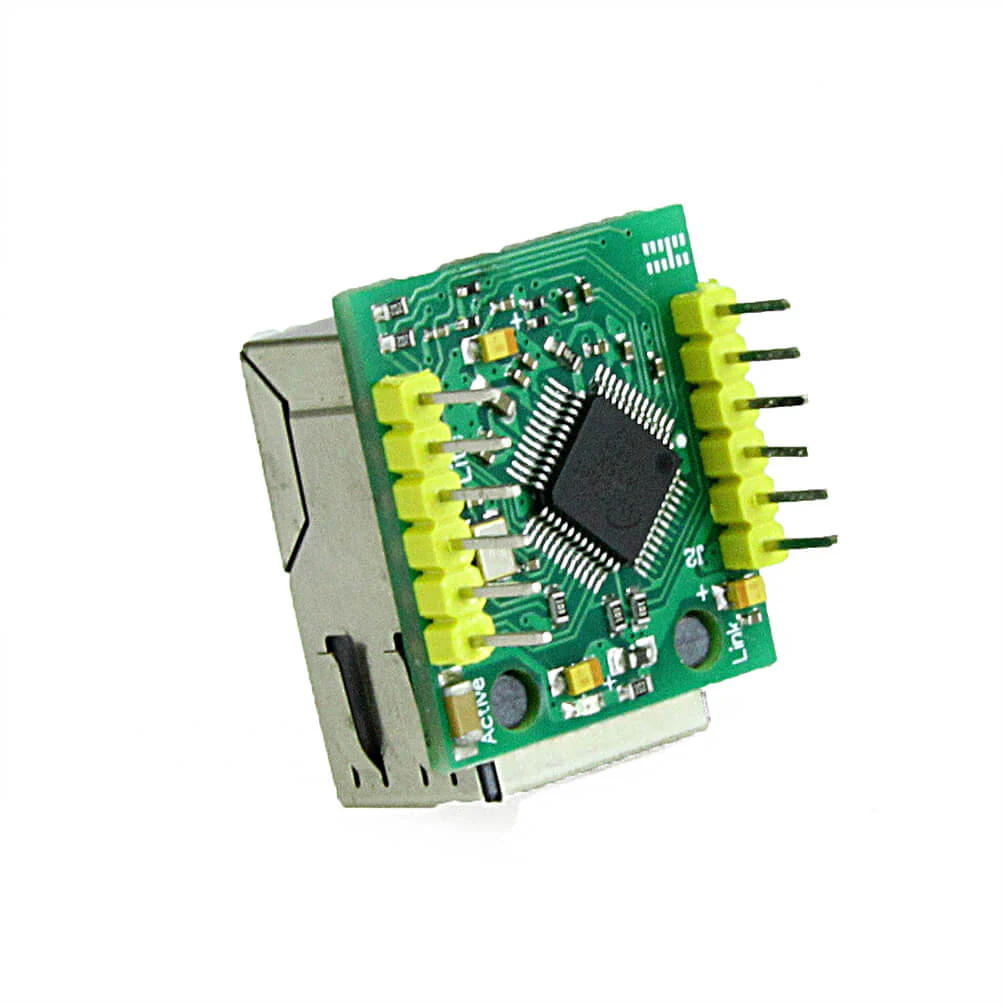

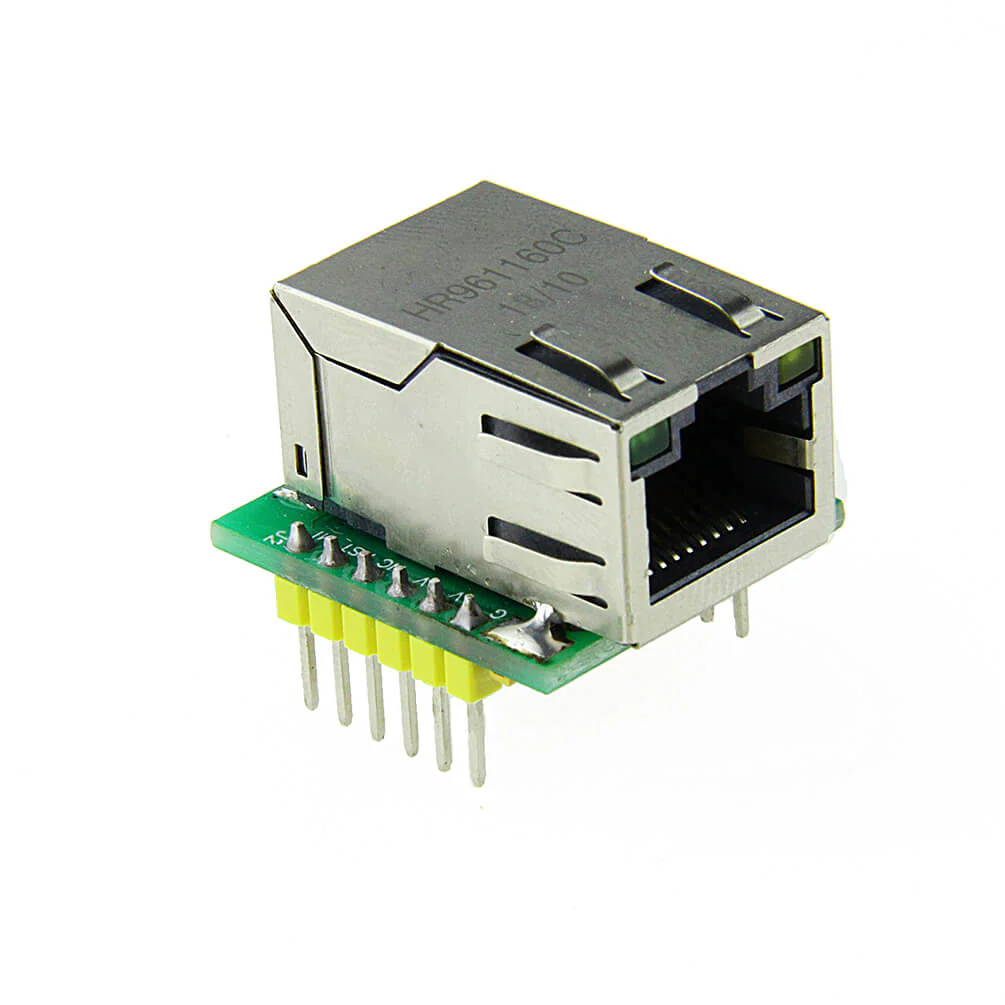

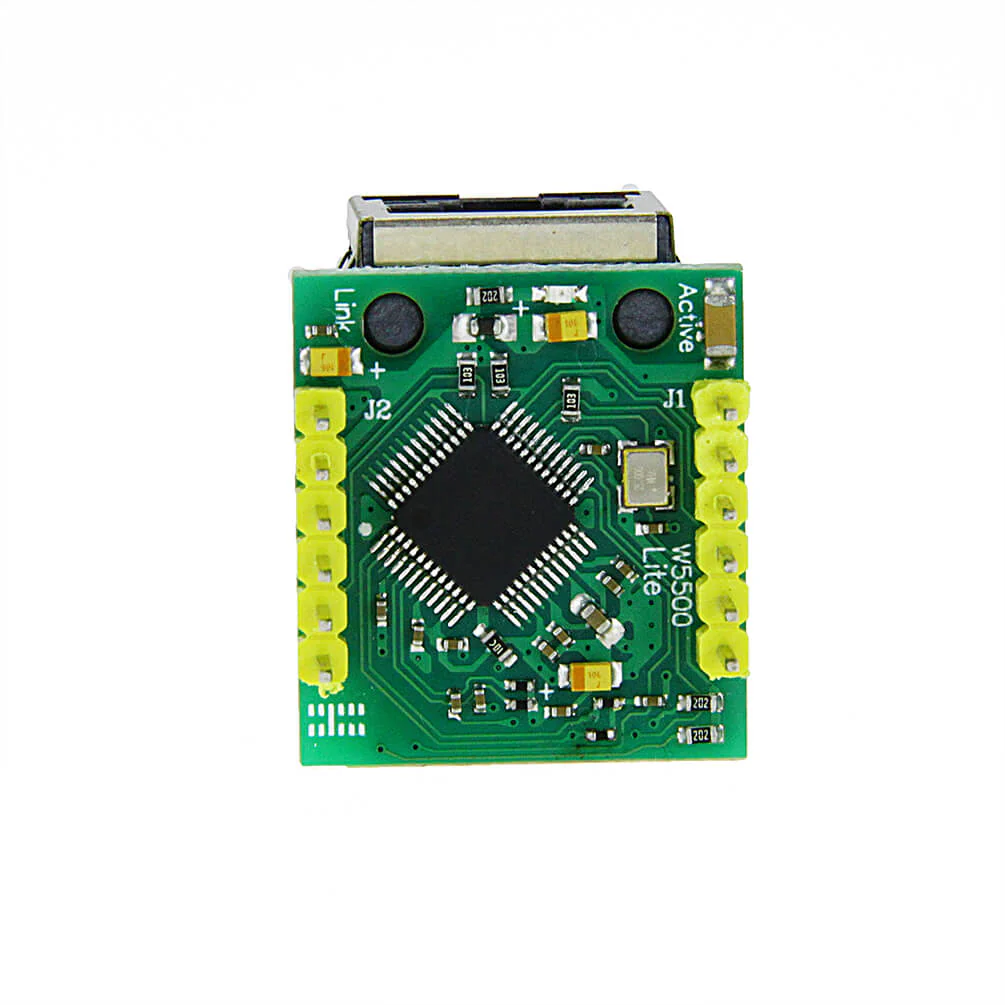

1 X W5500 Gateway Module(Default solder header)
Original: $5.49
-65%$5.49
$1.92Product Information
