T-Weigh
Note:
Because there is no USB to serial chip on the product motherboard,Ā needs the T-U2T auto-matic downloader to upload the program.
If you don't have a T-U2T,Ā please select the "T-Weigh+T-U2TĀ kit" toĀ upload the program, or buy it separately.

Specifications
| MCU | Ā T-Micro32 |
| Flash | 4Mb |
| Bus Interfaces | UART, SPI, I2C, CAN, I2S, SDIO |
| Wireless Connectivity | Wi-Fi:802.11 b/g/n/, BLE V4.2 |
| LoRa frequency band | EU868 / US915 |
| Onboard functions |
Button (RST+BOOT), DC 5~12V Power SX1262 |
| Ā Low Power LoRa Transceiver Low RX current of 4.6 mA |
| High sensitivity | Ā down to -148 dBm |
| Ā +22 dBm or +15 dBm high efficiency PA |
| FSK, GFSK, MSK, GMSK, and LoRa modulation |
Technology Support [Github]
If you need technical support please check the link to find more details.
T-Weigh
Ā

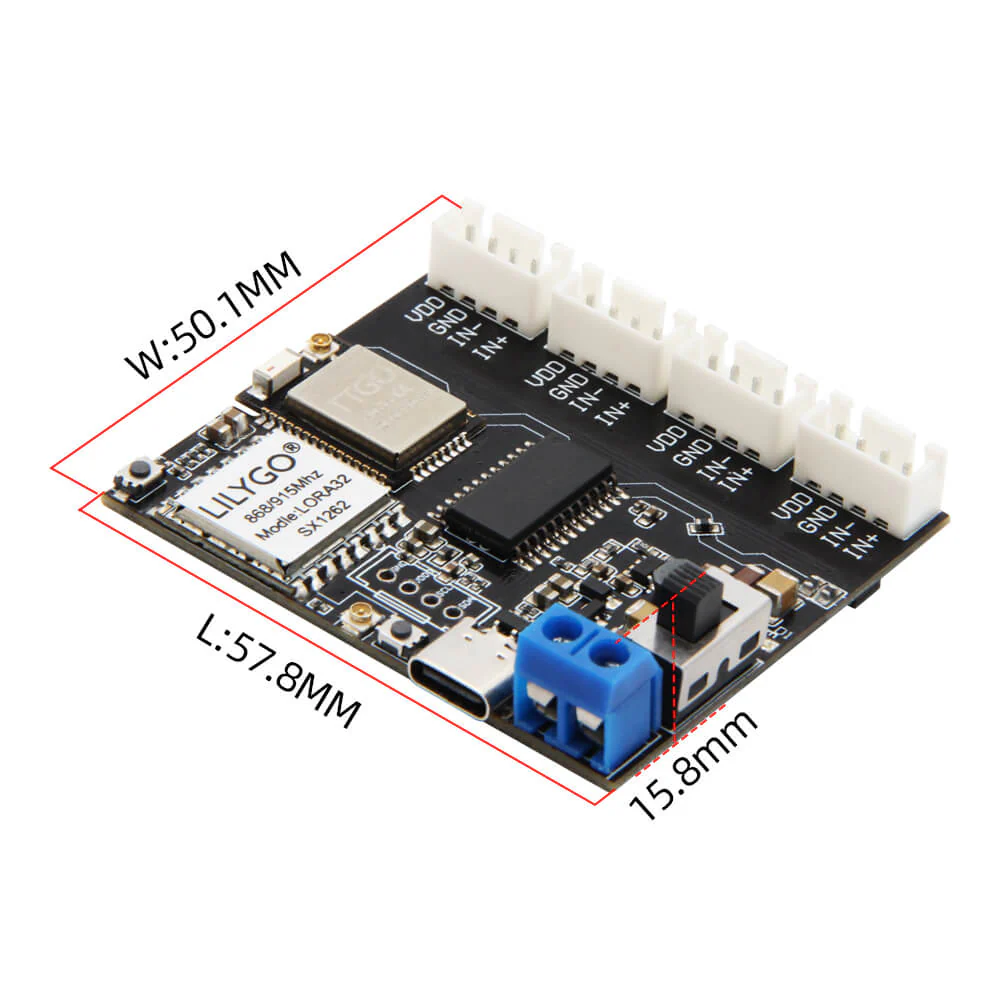

1. Size

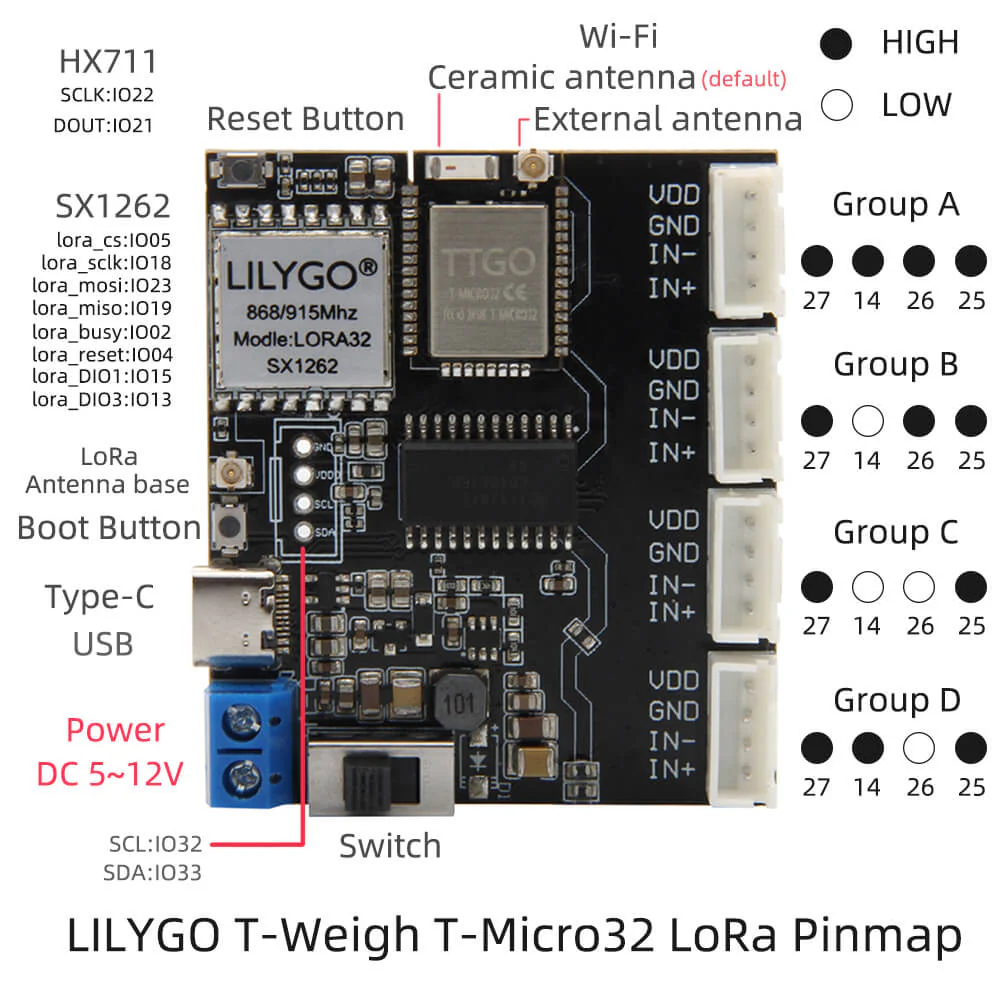

2. Pin Diagram






T-Weigh 868/915Mhz Options

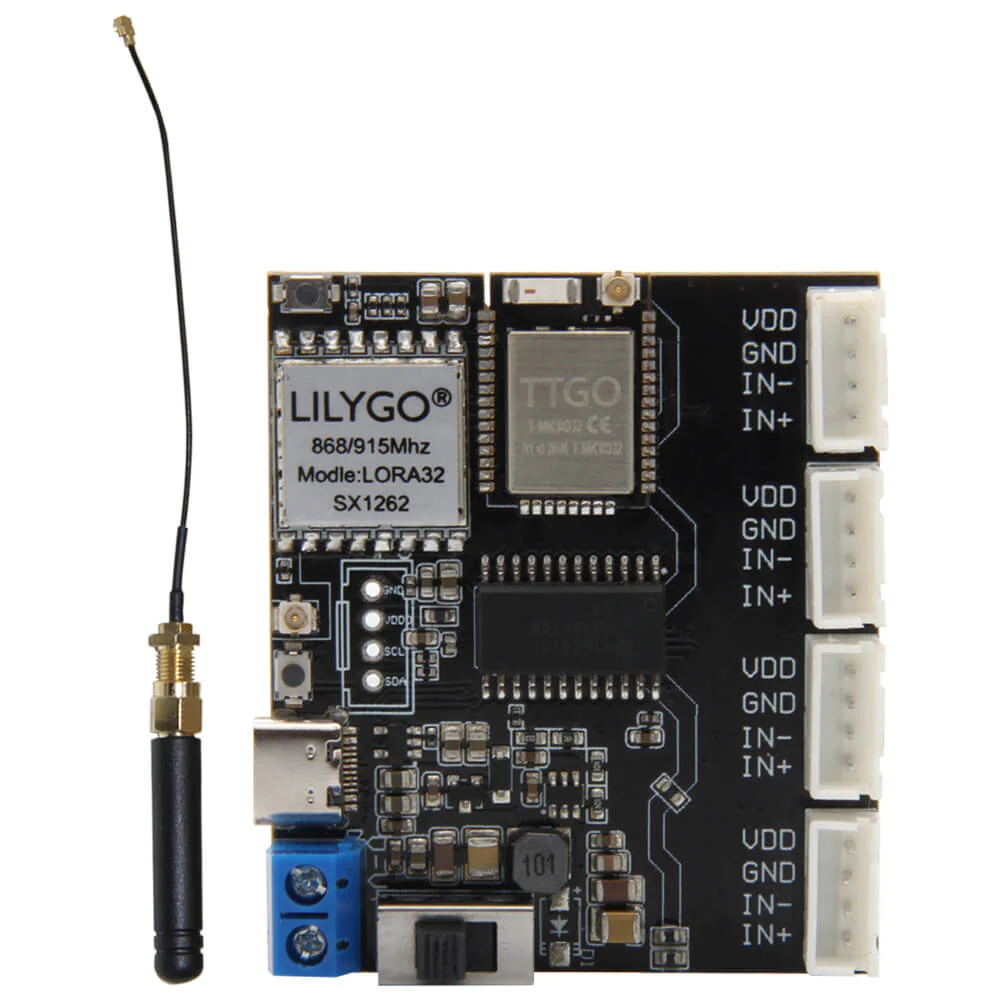

1 X T-Weigh
1 X Antenna (868 / 915)

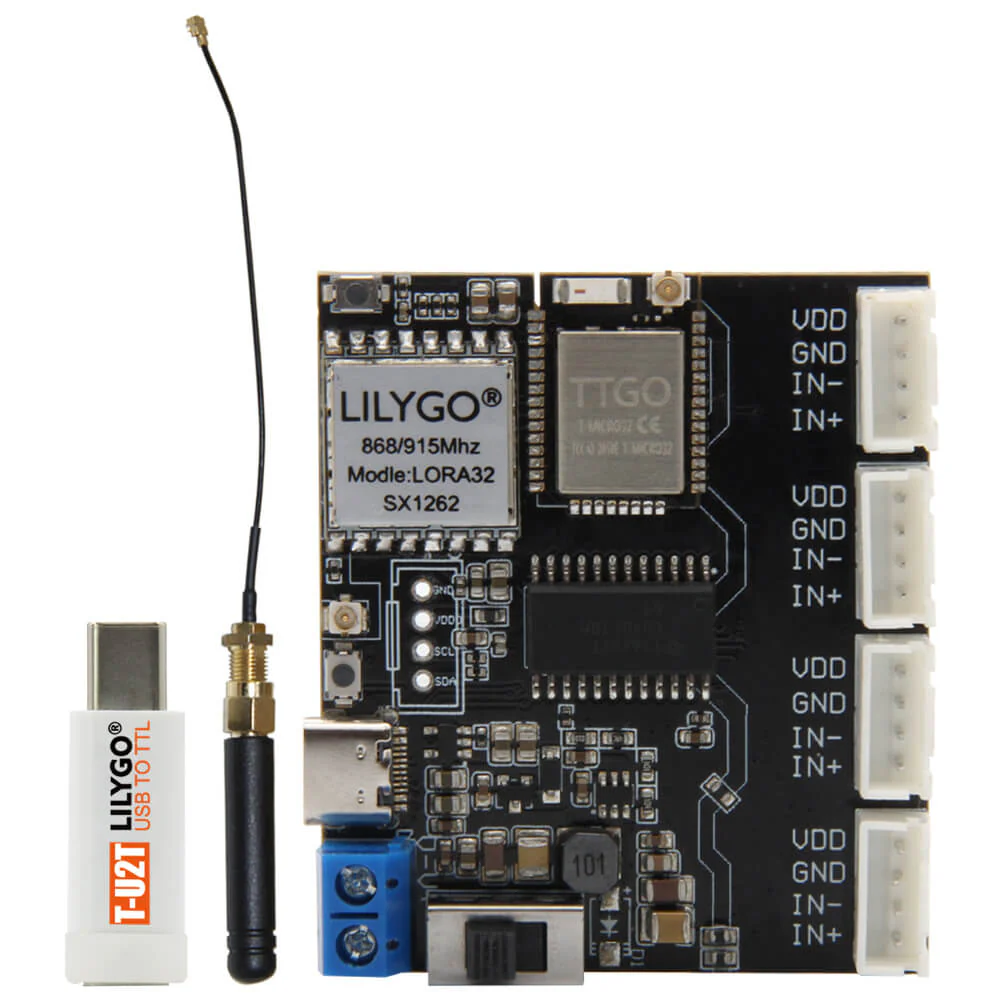

T-Weigh 868/915Mhz+T-U2T
1 X T-Weigh
1 X Antenna (868 / 915)
1 X T-U2T

Original: $20.88
-65%$20.88
$7.31Product Information
