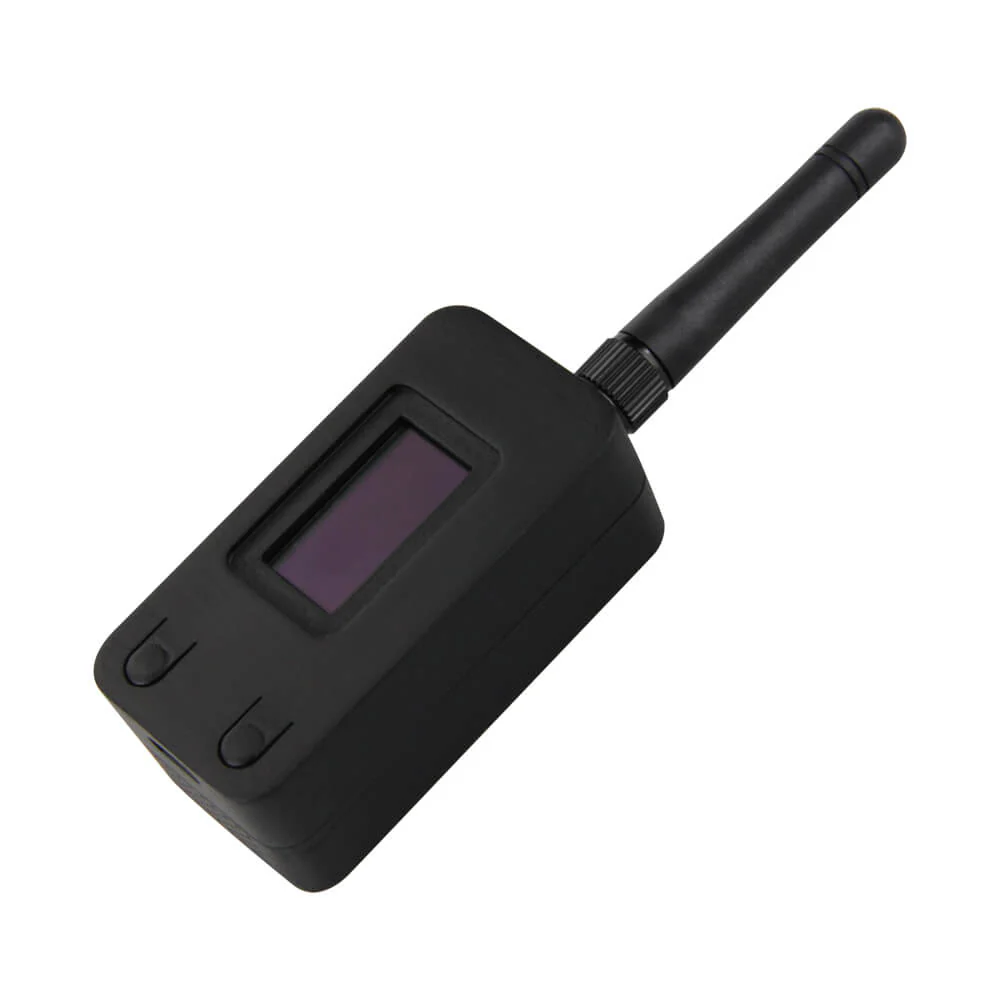

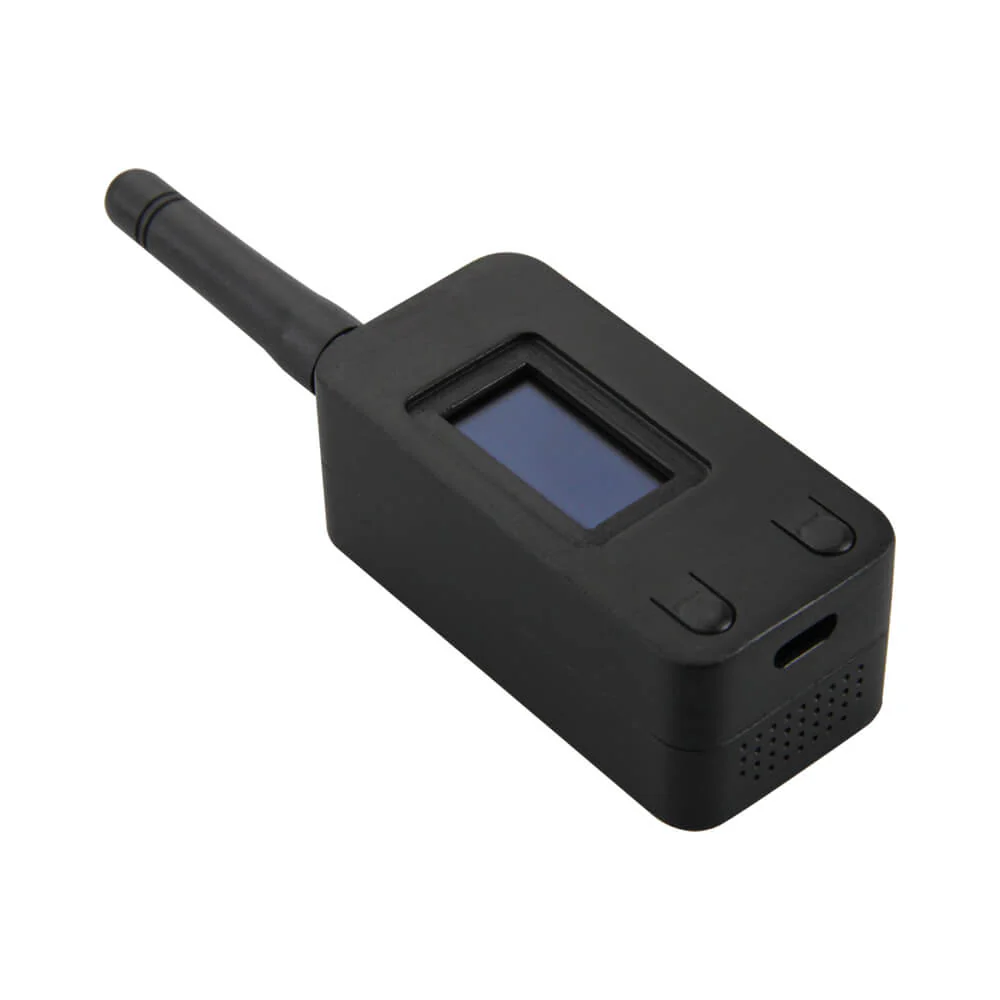

LoRa32 V1.0 Kit/ Sold Out

• This product is an LoRa [SX1276 chip] Module based on ESP32  with 0.96 Inch OLED . As a LoRa remote modem, 868-915MHz frequency, high sensitivity and reliability, and long transmission distance.

• Supports for Arduino development environment perfectly can be used for program checking and the development is easy and fast.

• Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes

If you don't want the Kit, check the LoRa32 V1.0

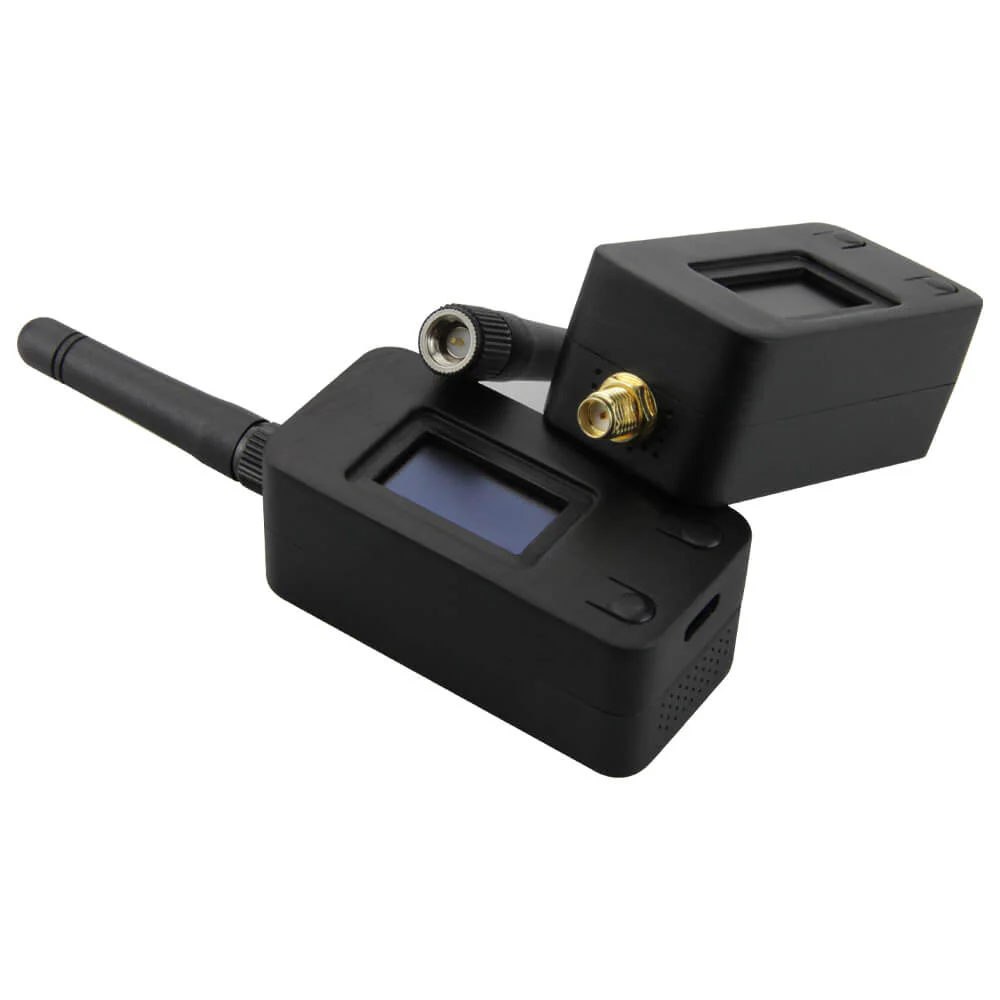

• The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected,  the signal will be weakened)

• When using, pay attention to "+" and "-" of the battery, including built-in battery.

• With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!)

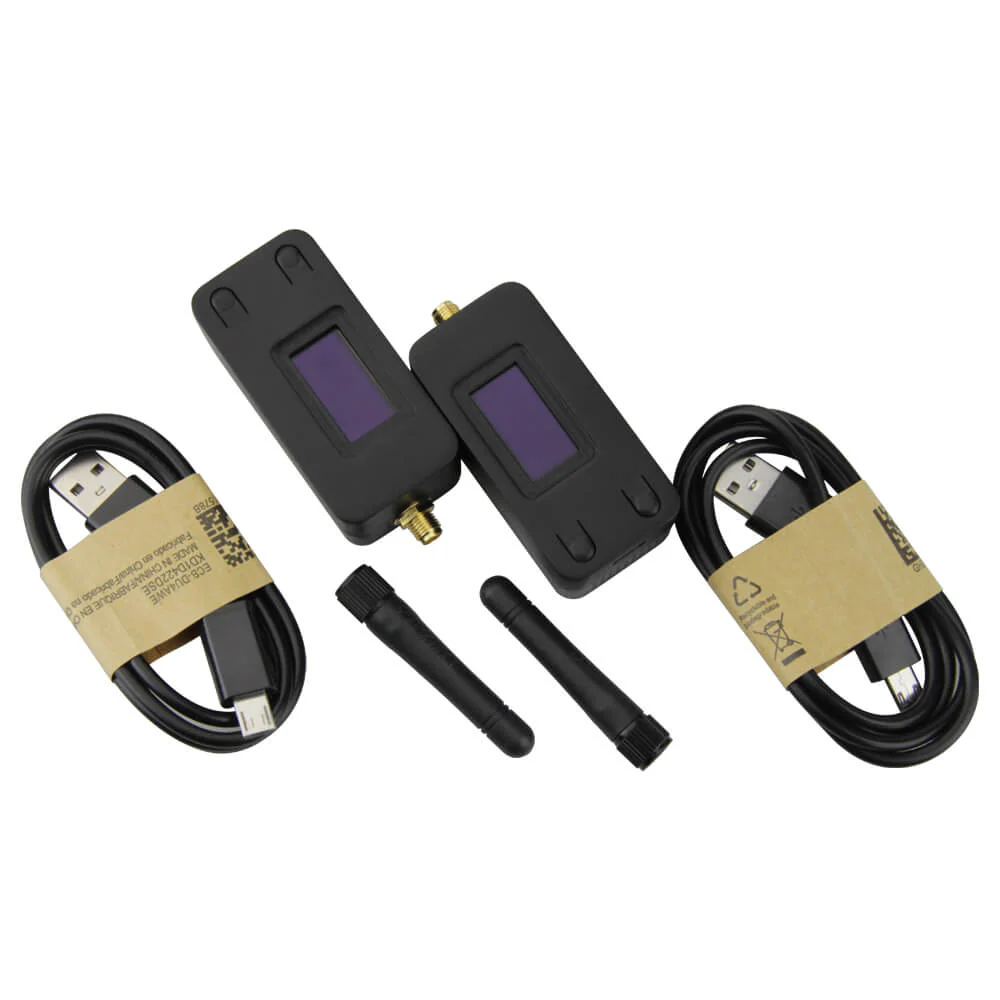

• Please use our matching USB cable [micro interface is a little longer than the ordinary version]

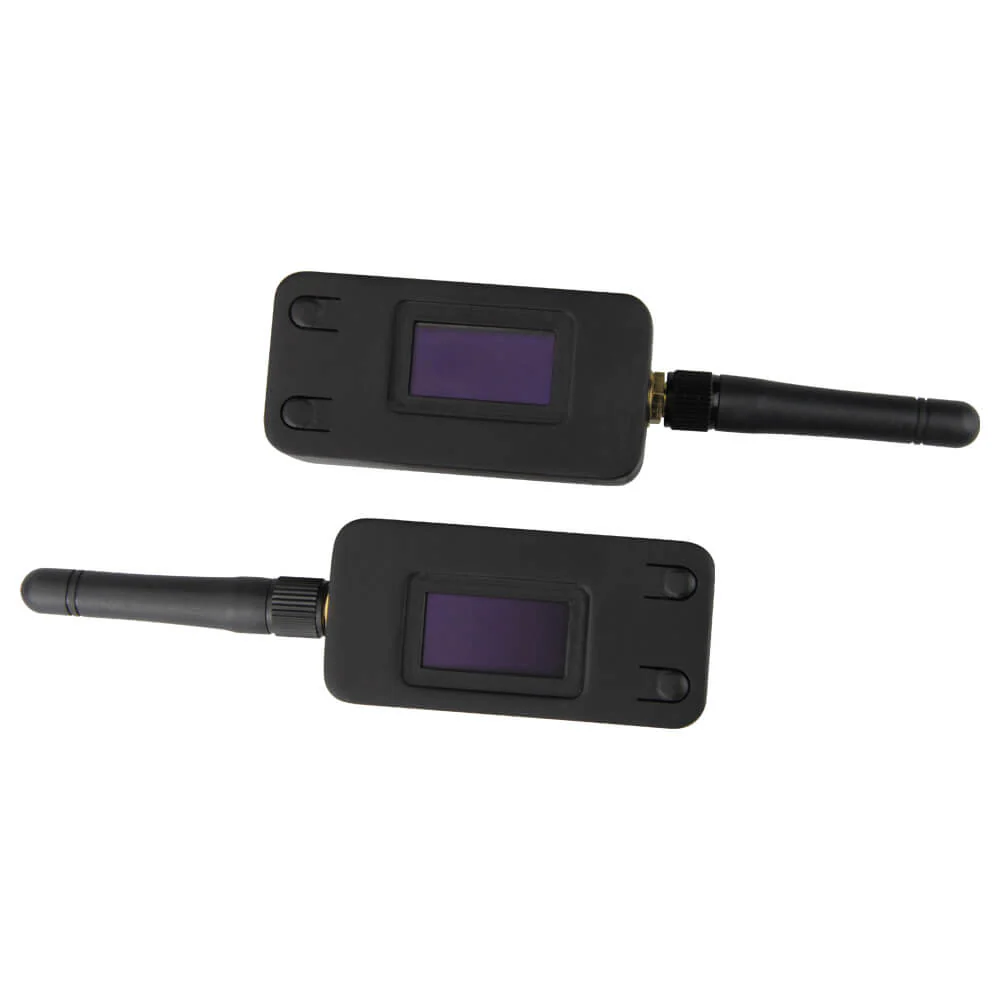

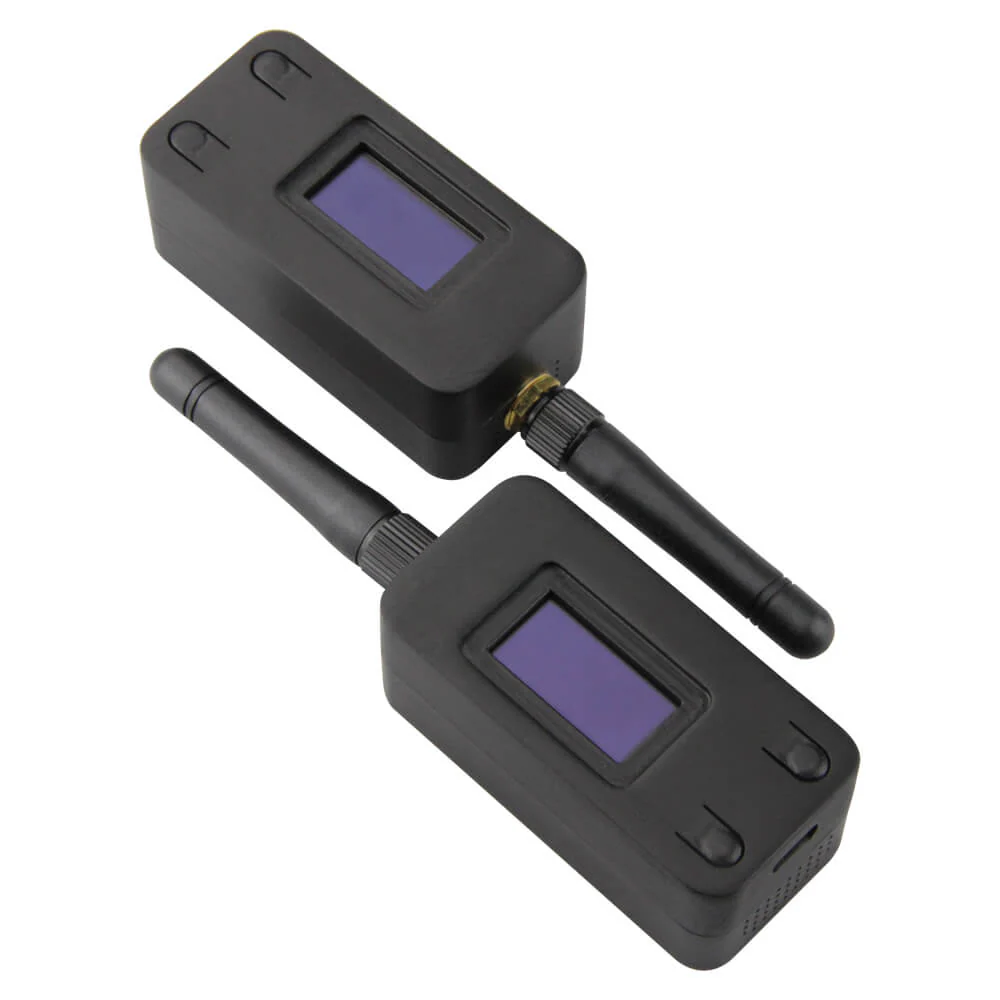

• It is recommended to purchase two-piece for testing in order to transmit and receive data facilitatly.

Technology Support [Github]

If you need technical support please check the link to find more details.

LoRa32 V1.0





Specification

MCU

ESP32

LoRa Chip

SX1276

Flash

4M

USB to TTL chip

CH910X

Antenna

Onboard WiFi 3D antenna LoRa antenna

OLED	0.96 Inch SSD1306 OLED 128*64

Operating voltage	3.3V to 7V
Operating temperature range	-40 ° C to + 90 ° C
Data rates	150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power	19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n Receiver sensitivity up to -98 dBm
Red light	Power indicator
Blue light	IO25 programmable control

1. Pin Diagram
