T-Internet-COM

LILYGO® TTGO T-Internet-COM ESP32 Wifi Bluetooth Board For T-PCIE Ethernet IOT Module With SIM TF Card Slot Type-C Connector

Specification

MCU	ESP32
FLASH	16MB
PSRAM	8MB
Bus Interfaces	UART, SPI, I2C, CAN, I2S, SDIO
Wireless Connectivity	Wi-Fi 802.11 b/g/n/, BLE V4.2
Onboard Buttons	RST+BOOT
WS2812 RGB	GPIO12
USB to TTL chip	CH9102
POWER	DC 5~12V
L AN8720 Ethernet Network Port	Single-Chip Ethernet Physical Layer Transceiver Flexible Power Management Architecture



Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-Internet-COM

Recommend combined with T-PCIE

PICE-SIM series modules are not included by default, you can check the below link to buy according to your need.

T-PCIE

1. Size

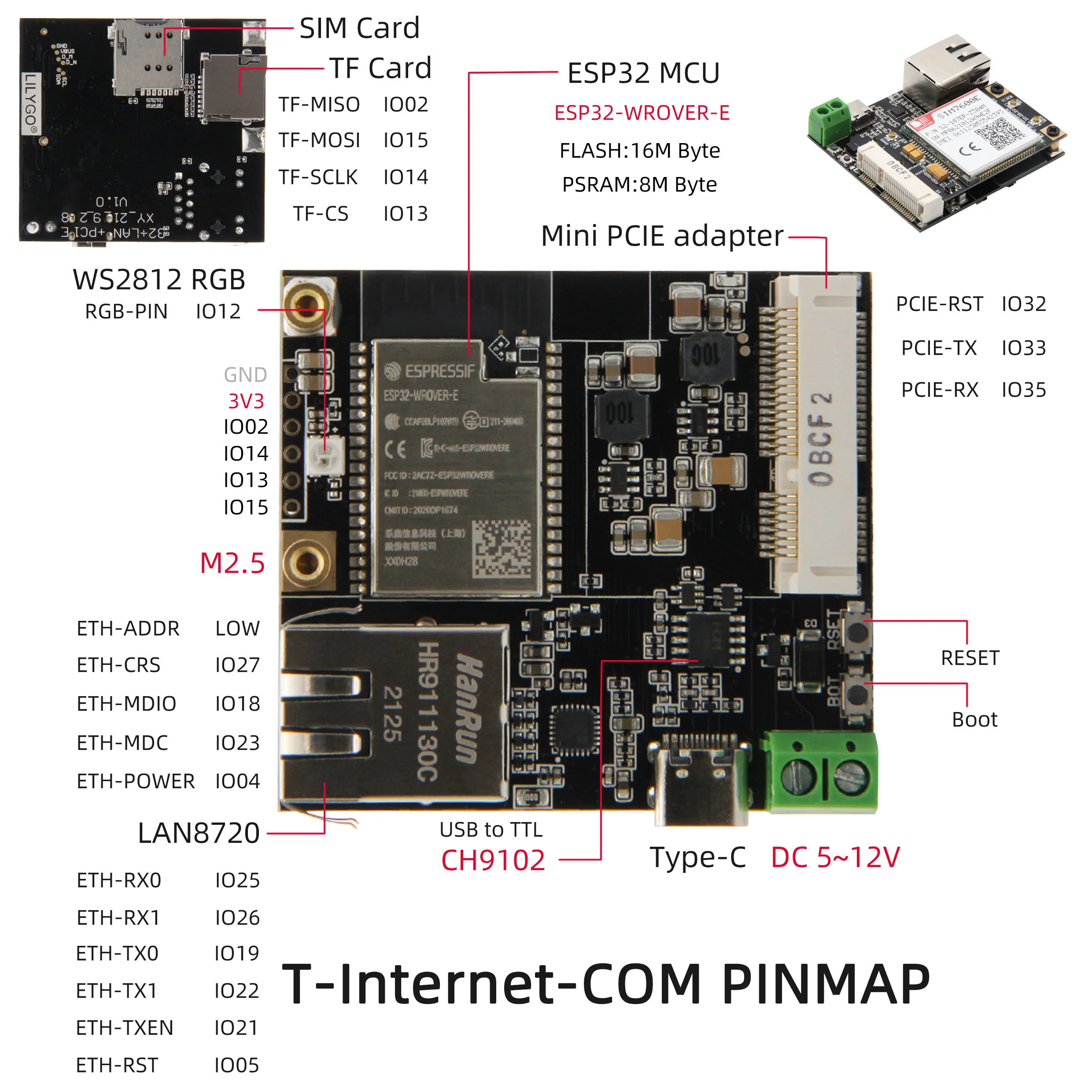

2. Pin Diagram

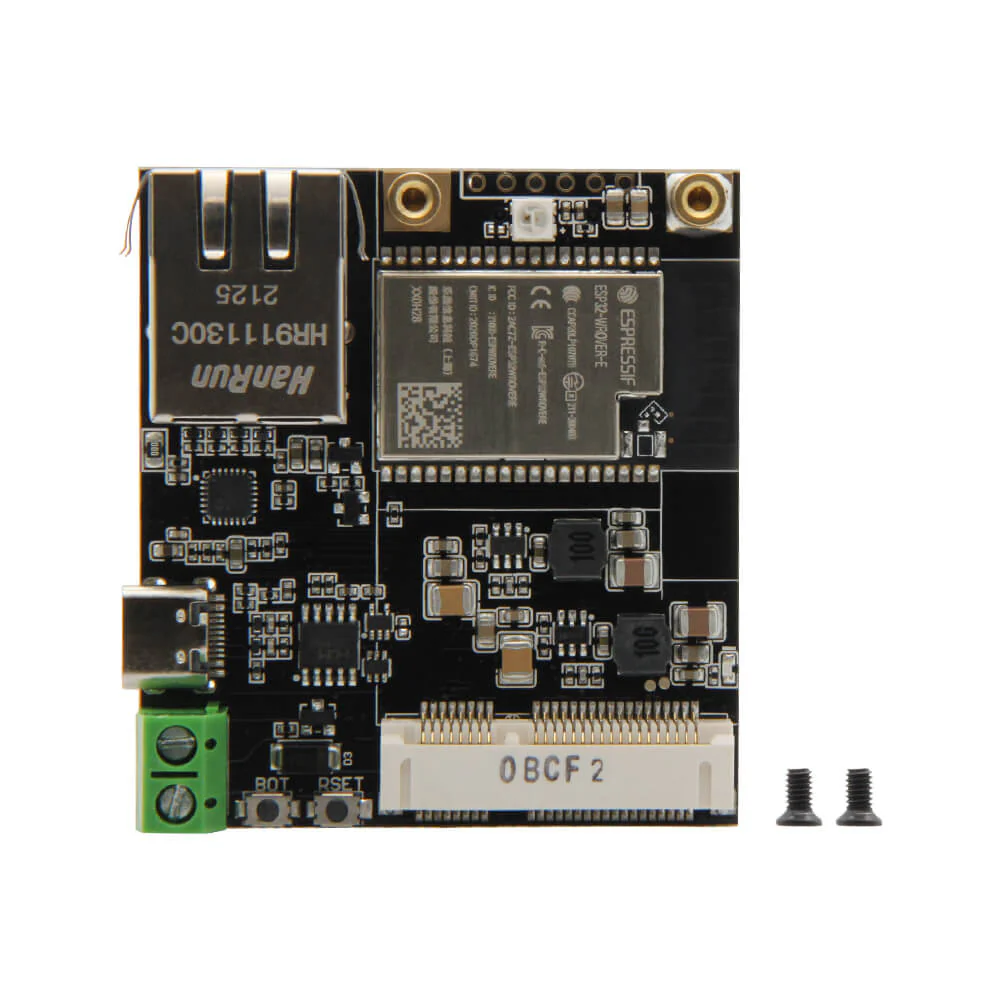

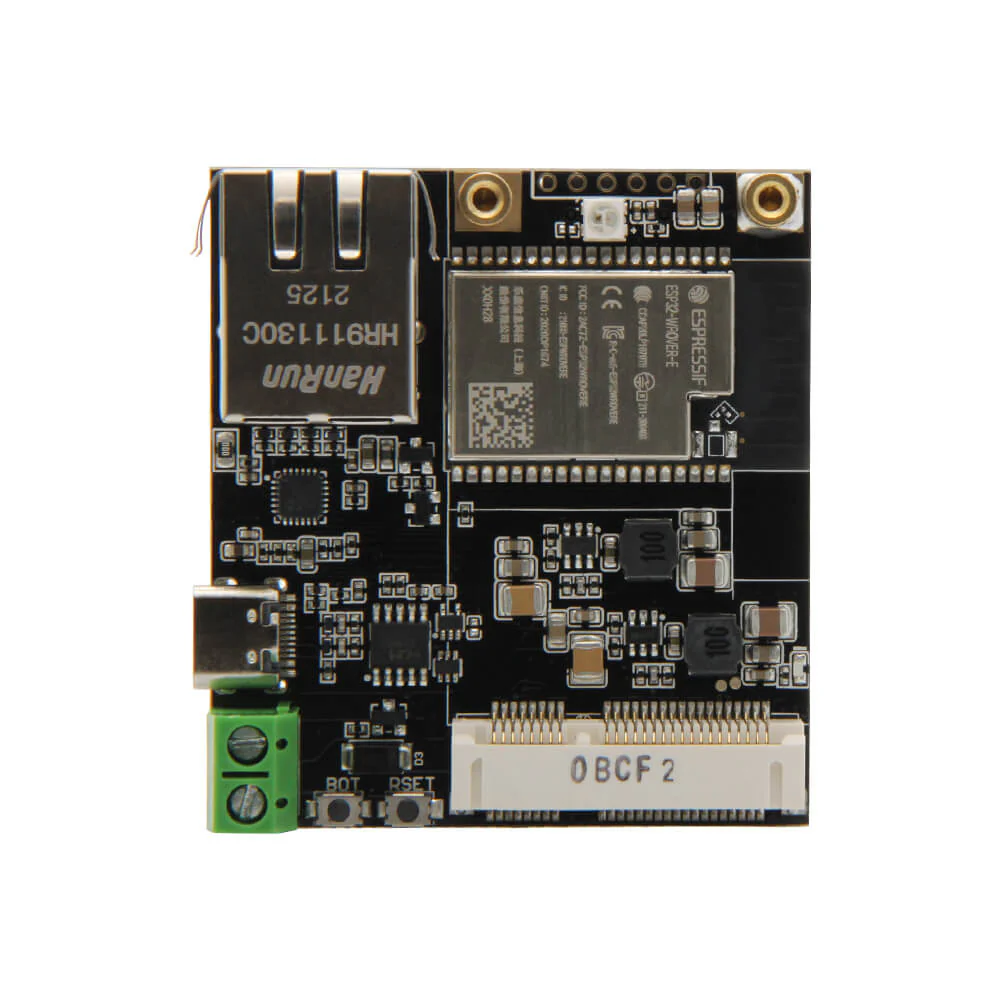

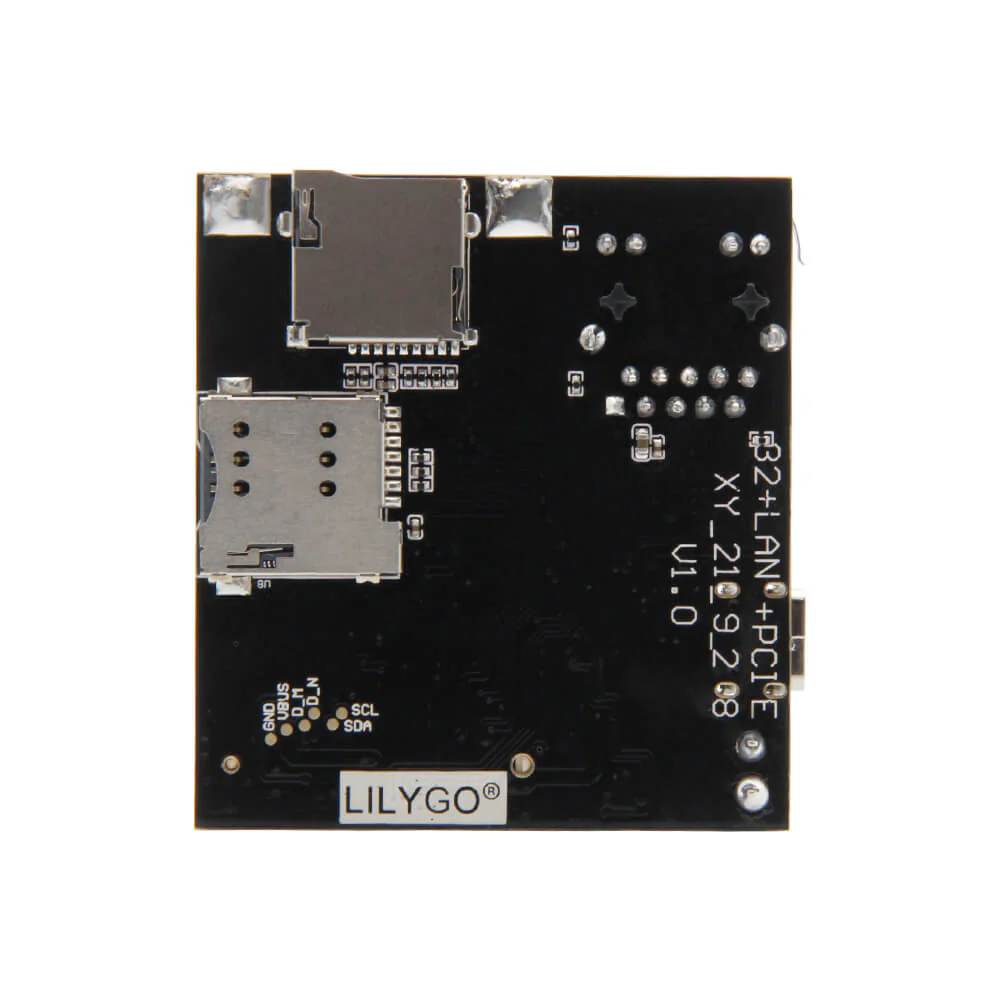

3. Appearance

• 1 X T-Internet-COM
• 2 X M2.5X5mm screws

[Note: PICE-SIM series modules are not included by default]

[Without SIM / TF Card.]
