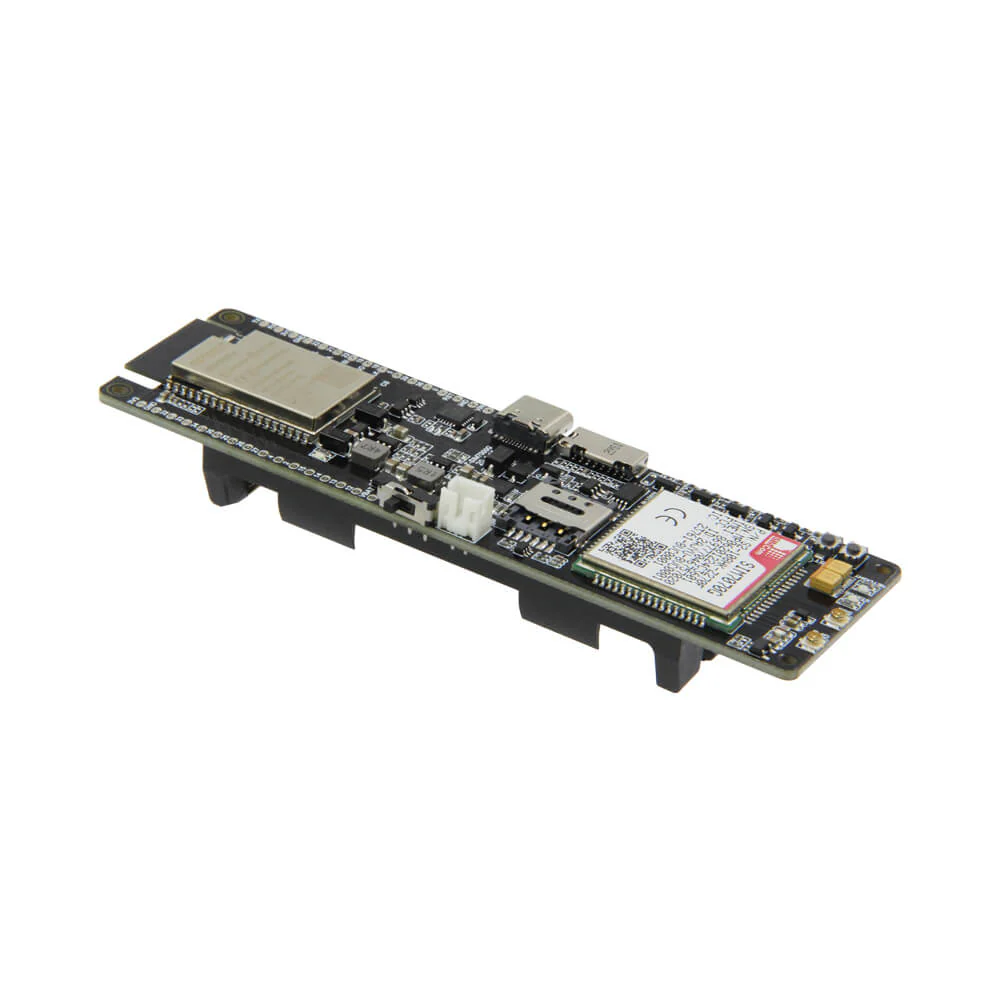

T-SIM7070G

LILYGO T-SIM7070G is the T-SIM series version.
The T-SIM series currently has the SIM7000G universal version and the SIM7000JC Japanese version, and the 4G SIM7600G version.

Among them, SIM7070G, SIM7000JC, and SIM7000G are compatible versions but only certified Certificate differences.
The SIM7600G belongs to the 4G communication version.

Specifications

MCU	ESP32-WROVER-E
LTE&GSM	T-SIM7070G
Support	Nano SIM Card, TF Card
USB to TTL	CH9102

ESP32

Clock Speed	240Mhz
PSRAM	8MB
Flash	4MB
Protocol	TCP/ UDP/ HTTP/ HTTPS/ FTP/TLS/ DTLS/ PING/ LWM2M/ COAP/MQTT
GNSS	Beidou, GPS, GLONASS
Interface	USB, SD Card, Solar Input interface
Wireless Connectivity	Wi-Fi: 802.11 b/g/n Bluetooth: v4.2 BR/EDR and BLE
Peripheral Interfaces	I2C、 SPI、 UART、 SDIO I2S、CAN



Reference Sample Code [Github]

If you need technical support please check the link to find more details.

T-SIM

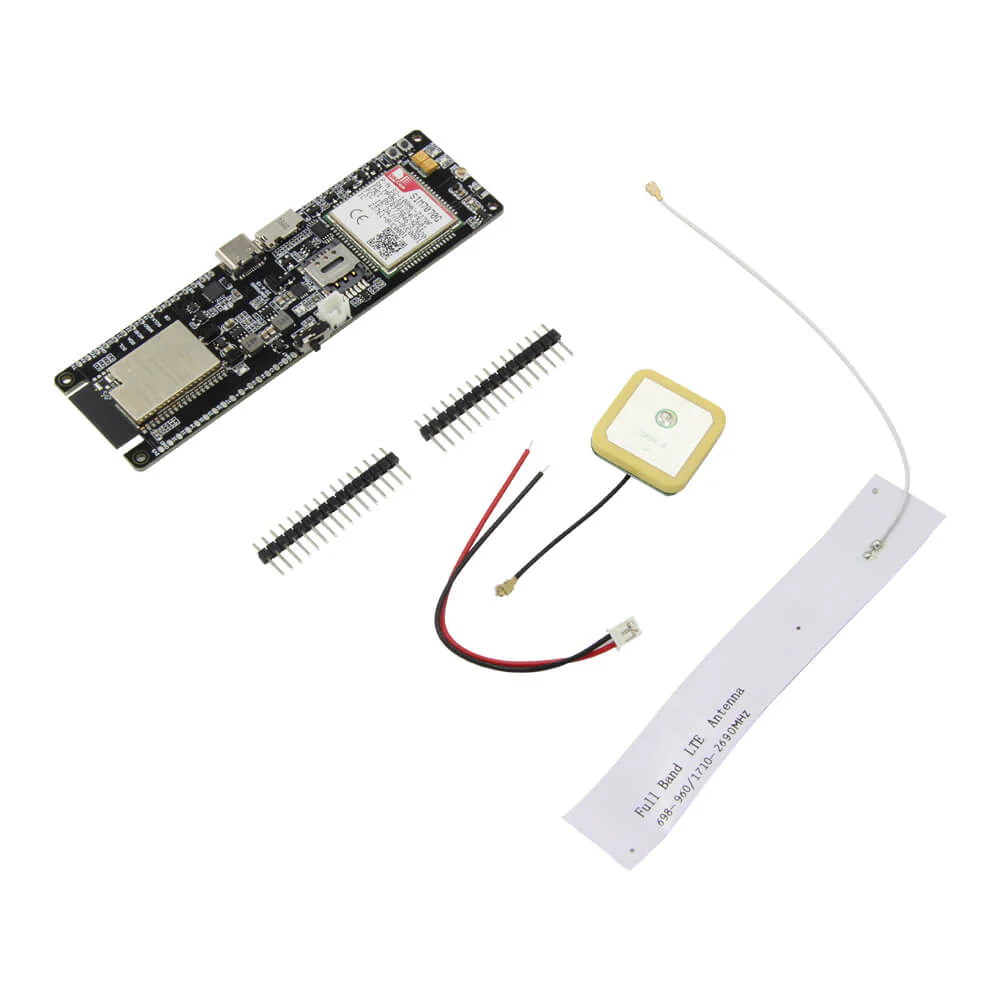

What's In The Box

• 1x T-SIM7070G module
• 1x LTE antenna
• 1x GPS antenna
• 1x Power cable
• 2x Pin
