T-SIM7600E/G/SA-H

• T-SIM7600 is a wireless networking module with WIFI/Bluetooth/4G LTE CAT4 GPS.

• T-SIM7600X-H is ten times faster than T-SIM7600X's Download link (DL) and Upload Link (UL); LTE (Mbps) is optimized from 10(DL)/5(UL) to 150(DL)/ 50(UL)

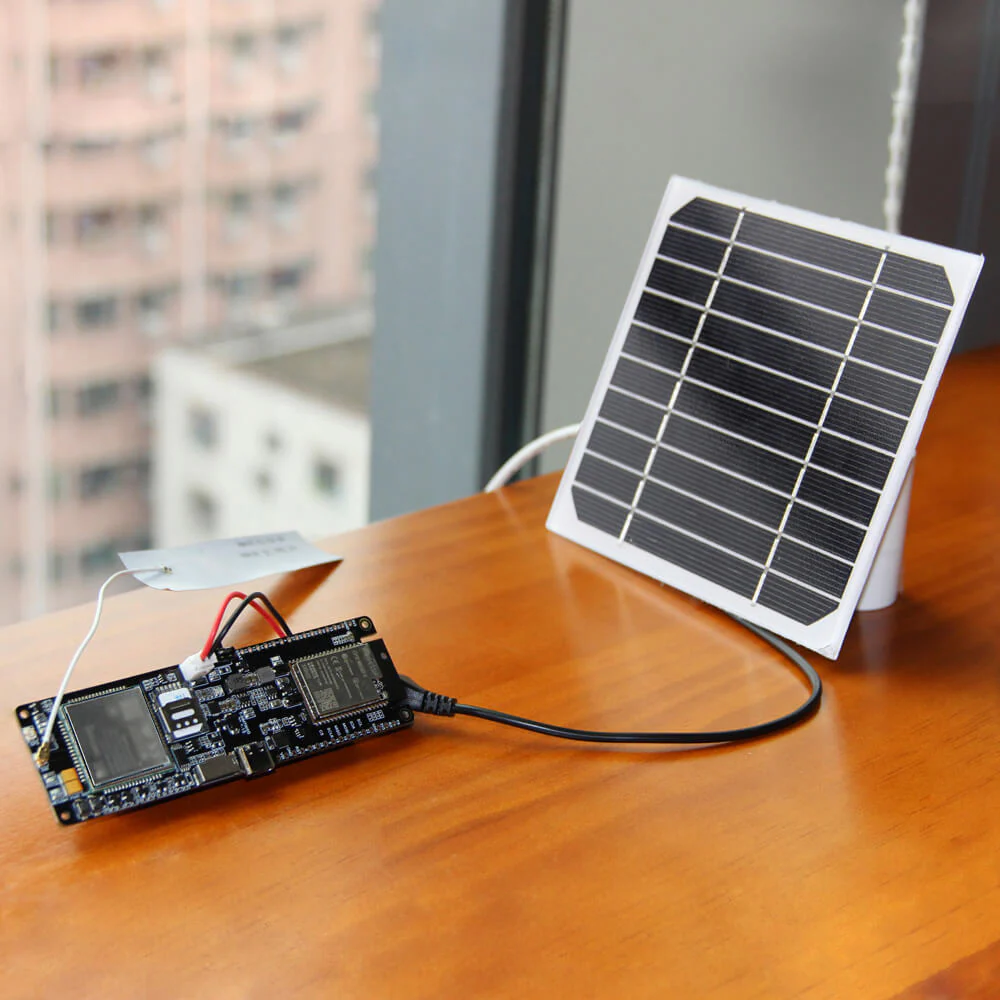

• On this basis, we integrate a 18650 battery holder and add a solar charging interface.

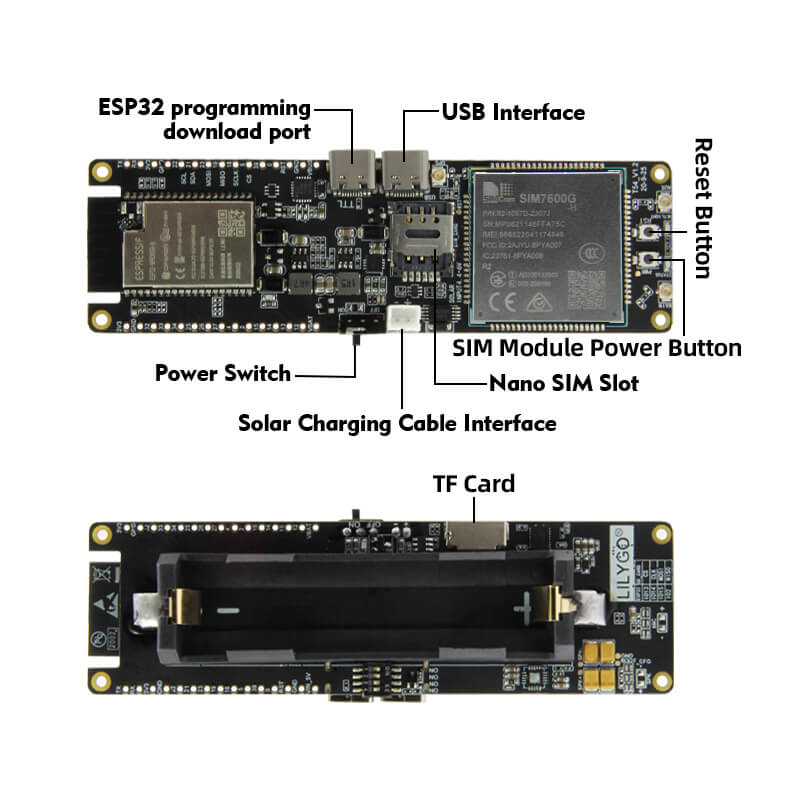

• In order to facilitate the use of various application scenarios, two T-type-c interfaces are reserved on the development board.

1. one is used to upload the program to the main control chip
2. And the other is the SIM7600E-H USB dongle industrial network card interface. It can be connected to a computer via a USB cable and configured as a wireless network card.

1. The battery's positive and negative poles to avoid connecting to the wrong protection, overcharge, and over-discharge protection.
2. GPS power control reduces power consumption, the lowest reaches 300uA when sleeping.
3. Replacement of ordinary charging IC with solar charging IC.

Technology Support [Github]

If you need technical support please check the link to find more details.

T-SIM7600X

What's In The Box

• 1 X T-SIM7600E-H CH9102
• 1 X SIM antenna
• 1 X GPS antenna
• 1 X Power cable
• 2 X Pin



• 1 X T-SIM7600G-H 2R CH9102
• 1 X SIM antenna
• 1 X GPS antenna
• 1 X Power cable
• 2 X Pin
