T5 V2.3.1

Overview

Due to the advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.

Features

No backlight keeps displaying the last content for a long time even when powered down at ultra-low power consumption, basically, power is only required for refreshing and comes with development resources and a manual (examples for Arduino-esp32)

 Specifications

Operating voltage	3.3V
Interface	3-wire SPI, 4-wire SPI
Display color	black, white
Grey level	2
Full refresh time	8s
Refresh power	26.4mW(typ.)
Driver chip	SSD1680
Display Driver	DEPG0213BN/ GDEM0213B74

resolution	212x104
Wide operating temperature range	-20℃ ~ 60℃
Power consumption	ultra-low power consumption
Viewing angle	180 degrees
support	Use in the sun; Ultra-wide temperature -20 degrees use

Technology Support [Github]

If you need technical support please check the link to find more details.

T5 V2.3.1

Size

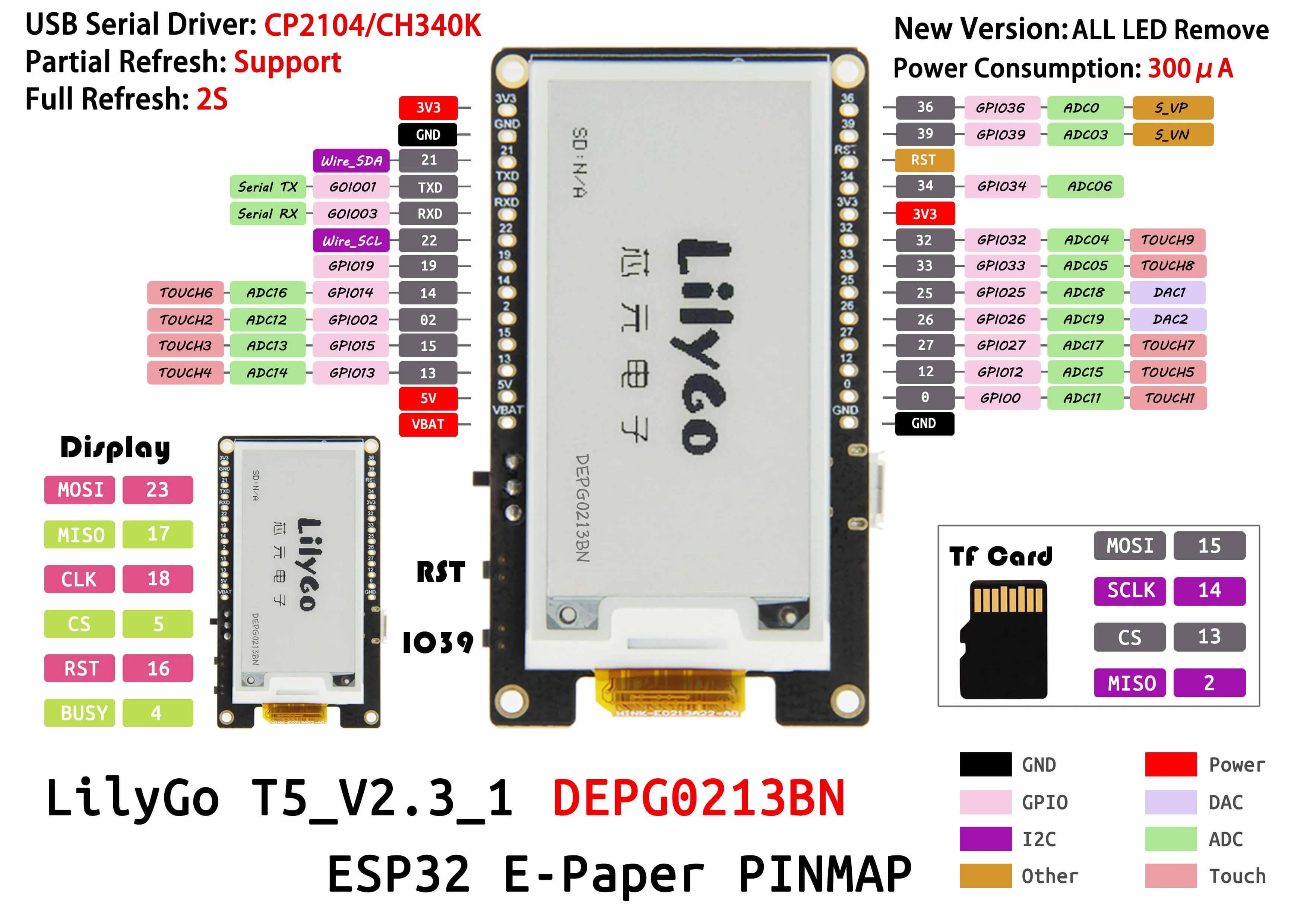

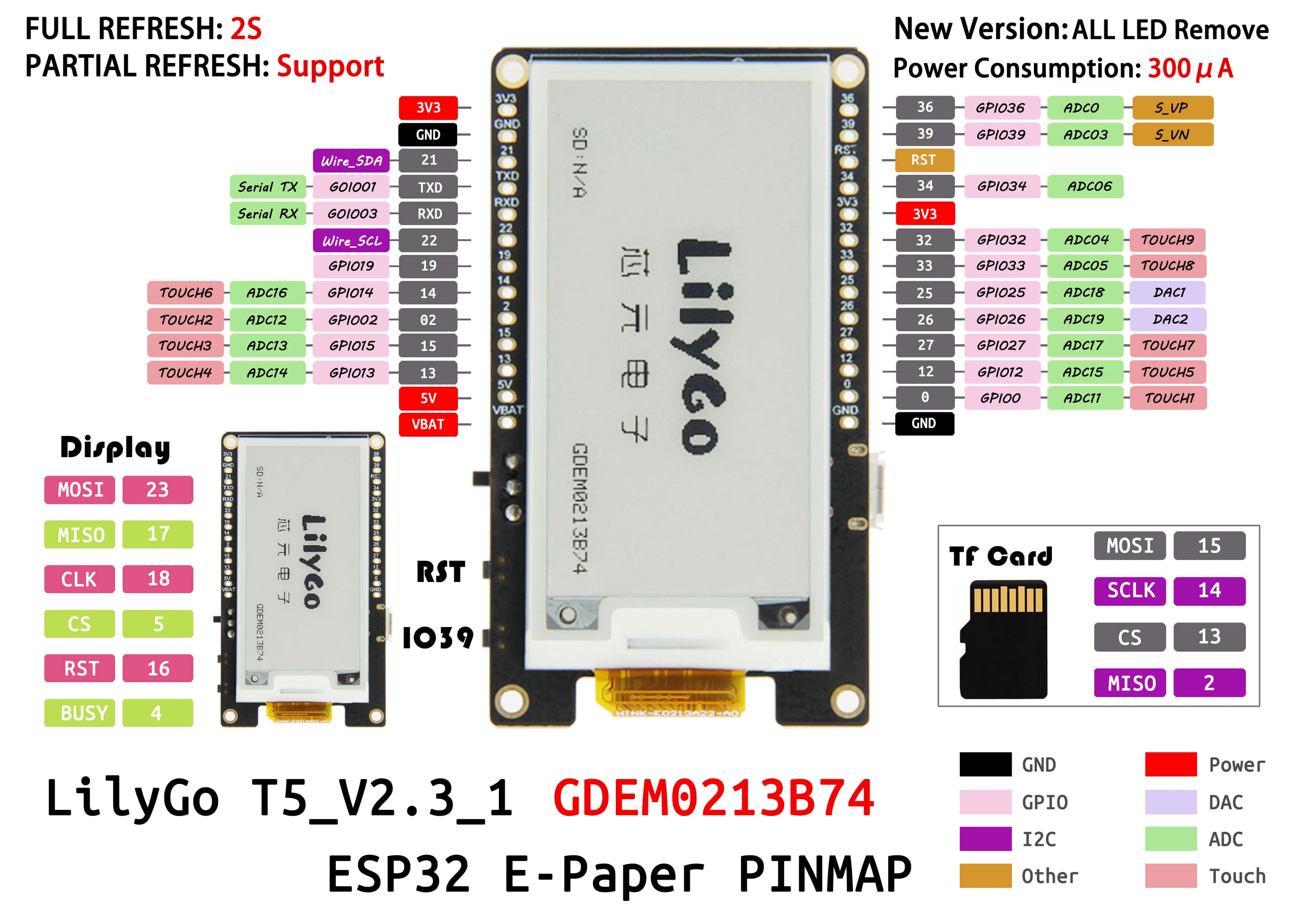

Pin Diagram

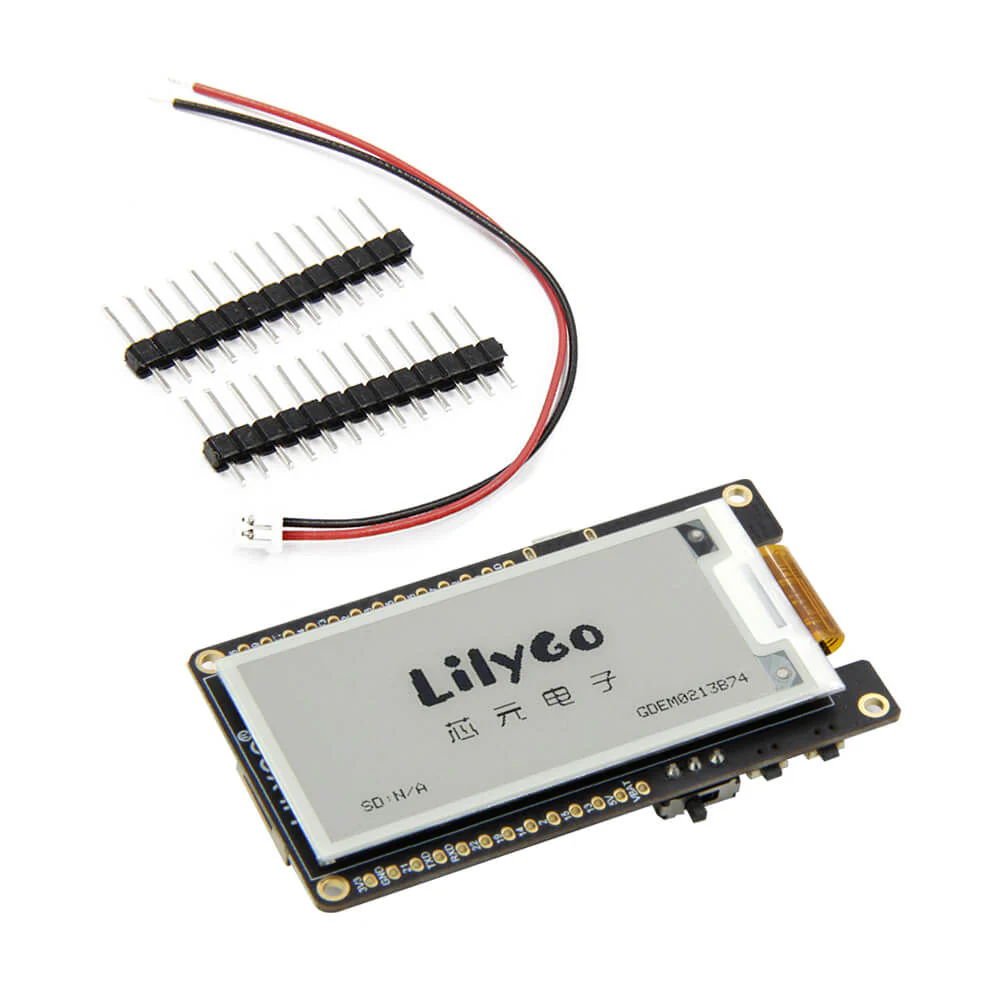

• 1 X T5 V2.3.1_2.13
• 1 X Power Cable（Jst 2pin 1.25mm）
• 2 X Pin
