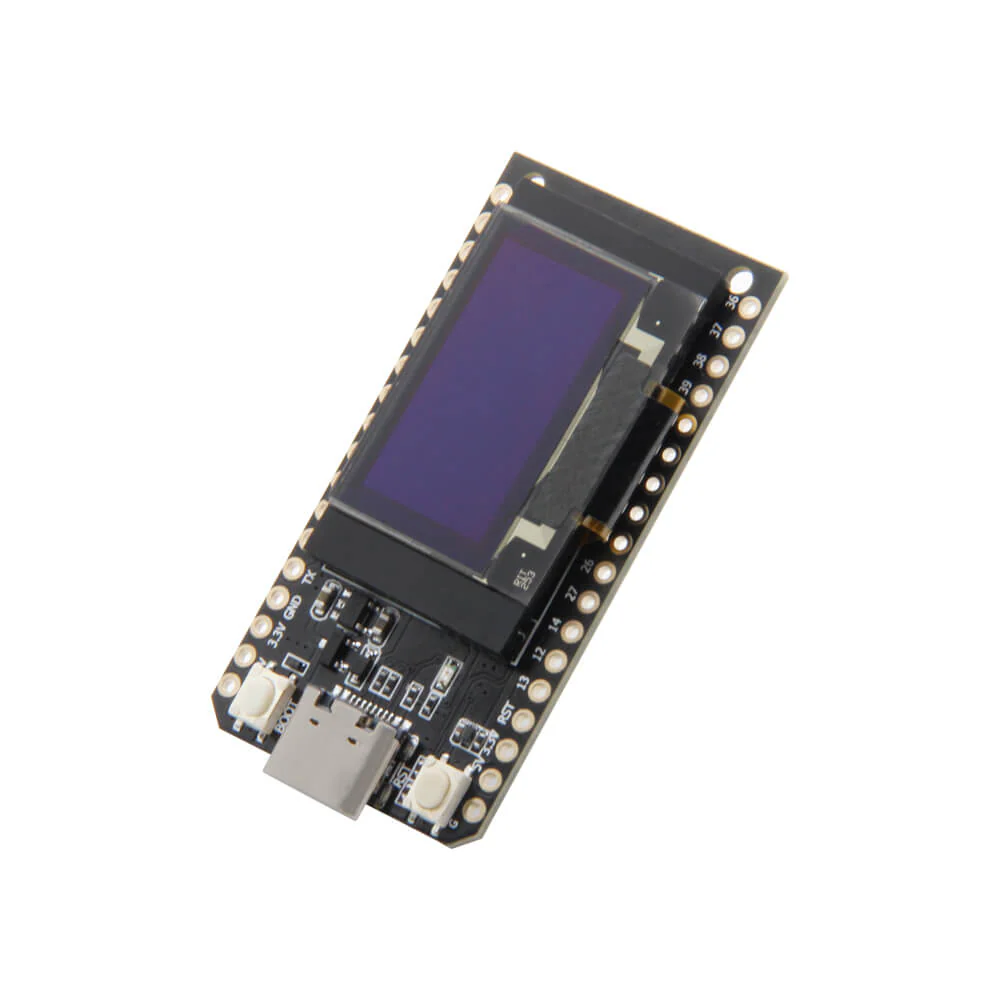

ESP32 OLED V3.0

About ESP32 OLED V3.0

The main control chip using ESP32 of Espressif , Tensilica dual core processor, clocked at 240MHz, computing capacity of up to 600DMIPS, 520 SRAM, 802.11 KB chip b/g/n HT40 Wi-Fi transceiver, baseband, and LWIP protocol stack,Bluetooth (Bluetooth dual-mode integrated traditional and BLE low-power Bluetooth).
Onboard 4M Byte (32M bit ) , Flash, and Wi-Fi antenna.
0.96 inch OLED display.
Lithium battery charging circuit and interface.
Type-C USB



Technology Support [Github]

If you need technical support please check the link to find more details.

ESP32 OLED V3.0



Note:
ESP32 QFN package is a highly integrated chip, because of high frequency, small volume and not easy to heat dissipation, so appeared high heat is normal when you work with the product , we complete the circuit had done to the stability of the evaluation, please rest assured use.



Pin Daigram



More Details

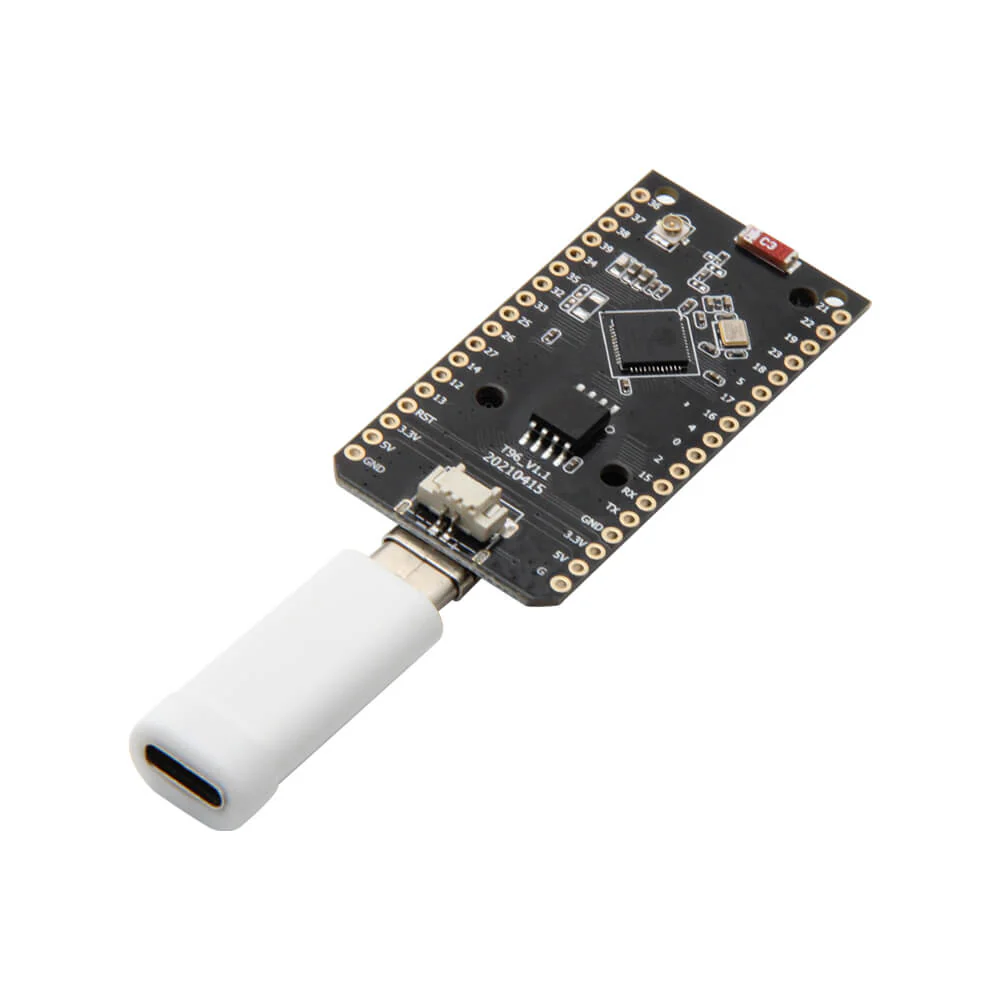

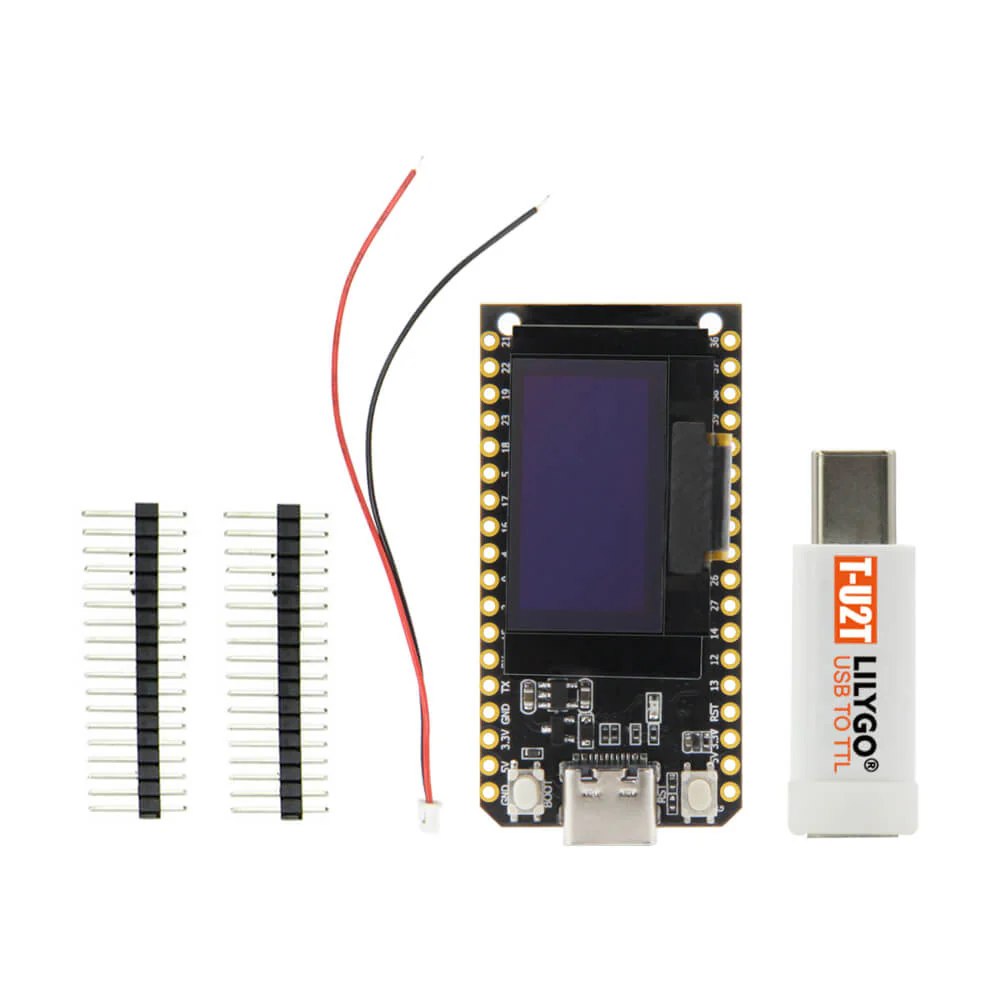

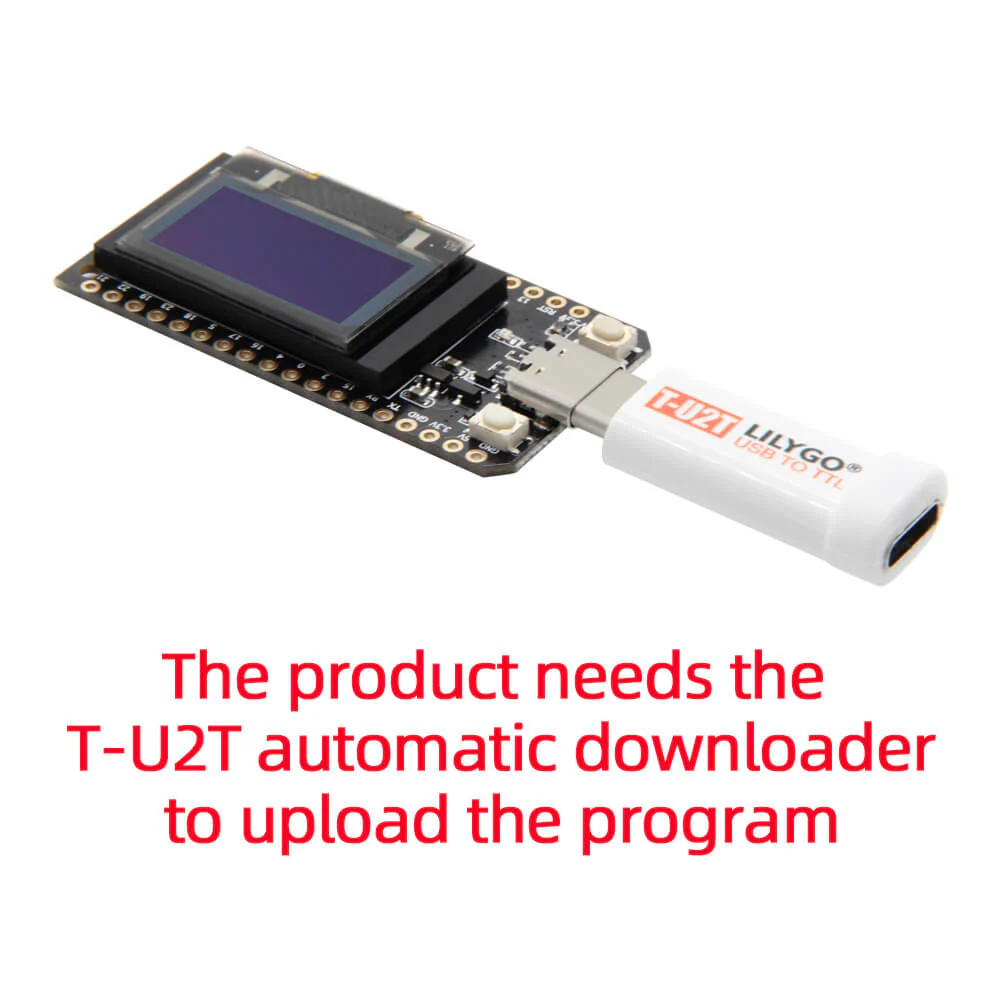

ESP32 OLED V3.0+T- U2T 9102

• 1 X ESP32 OLED V3.0
• 1 X Battery cable(Jst 2pin 1.25mm)
• 2 X Pin
• 1 X T-U2T USB to TTL

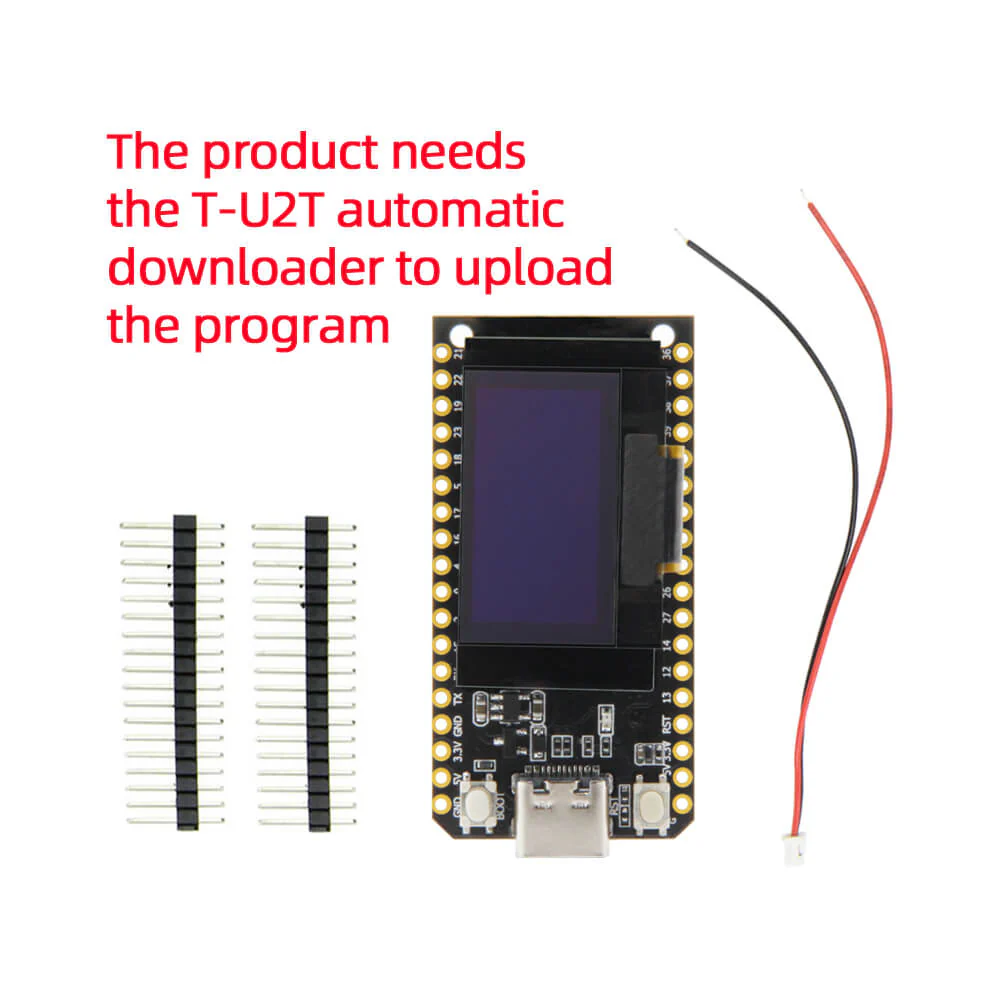

ESP32 OLED V3.0

• 1 X ESP32 OLED V3.0
• 1 X Battery cable(Jst 2pin 1.25mm)
• 2 X Pin
