T-Lora Pager Meshtastic

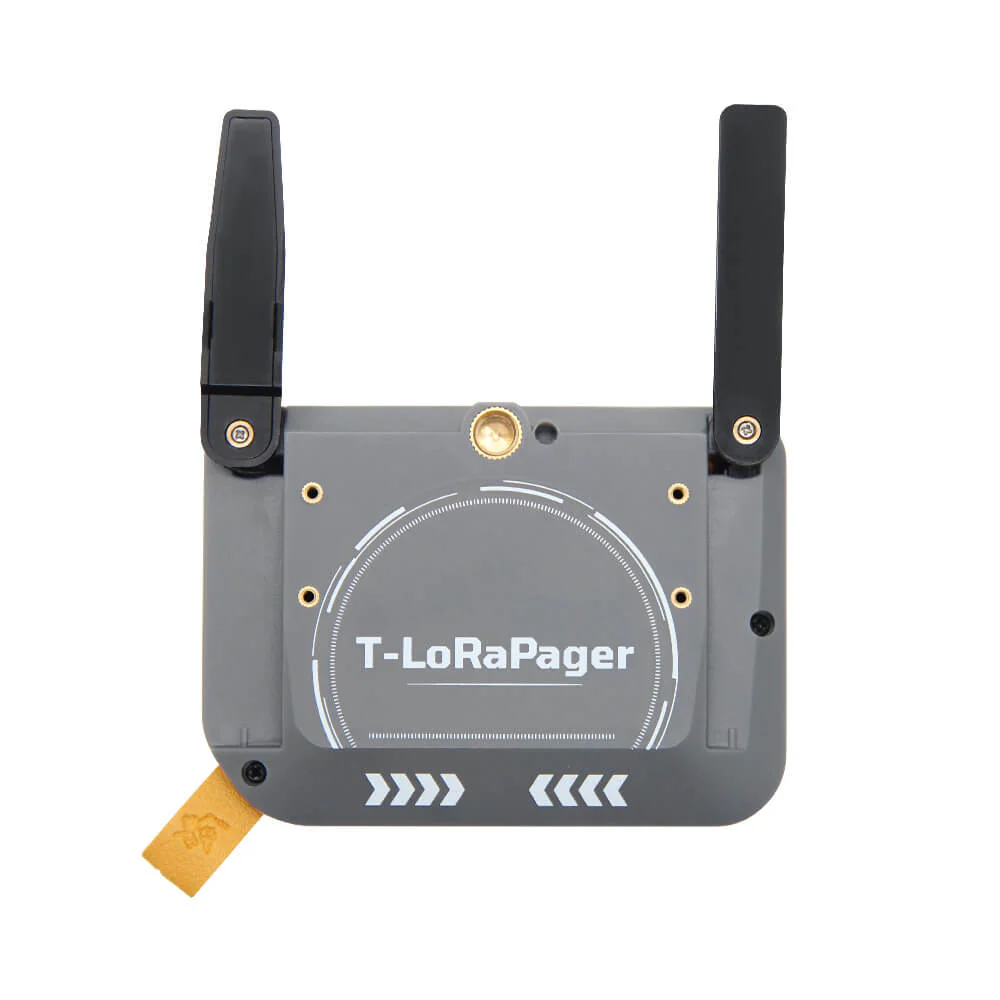

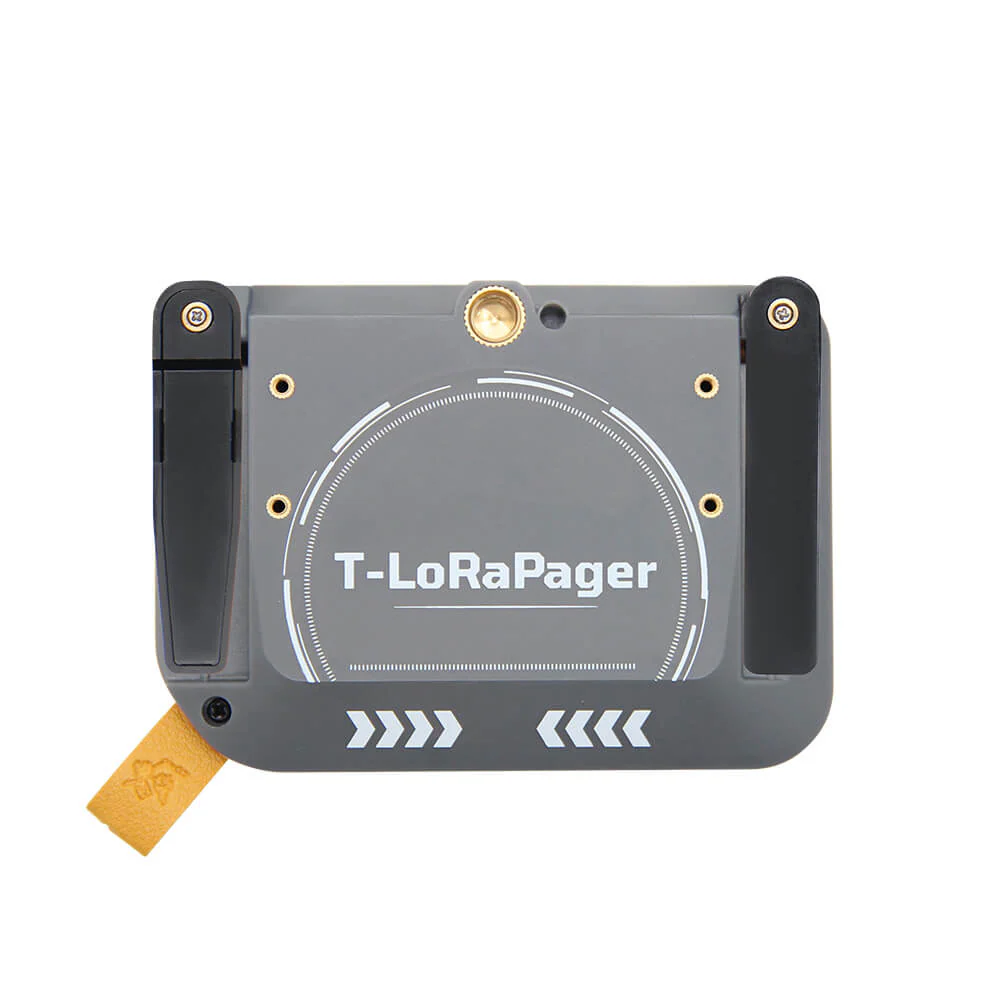

T-Lora Pager is the new member of the LILYGO T series, the compact exterior and foldable external antenna design, fully utilize the wireless performance while keeping the device aesthetically pleasing.

“ With LR1121 Module [K257-04] version supports three LoRa frequency bands: 868 MHz, 915 MHz, and 2.4 GHz.”

Core Functions Overview

• QWERTY keyboard
• AI support IMU (BHI260AP)
• 2.33-inch long screen (222 x 480 resolution)
• U-blox GPS module (MIA-M10Q)
• RFID/NFC + RTC circuitry
• TI Power Management Monitoring Chipset
• ES8311 (microphone/speaker/headphone jack)
• Encoder + Keypad

Specifications

MCU	ESP32-S3
Flash	16MB
PSRAM	8MB
Development	Arduino-IDE,VS Code,ESP-IDF
Board Function	RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard
Size	106 x 89x 23mm
USB Charging	5V, 500MAH

Tech Support

ℹ️Product Information Check out our GitHub repository for sample code and more detailed information about this board. 💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.

Shipping List of T-Lora Pager [433/ 868 /915 MHz/ With LR1121 Module]:

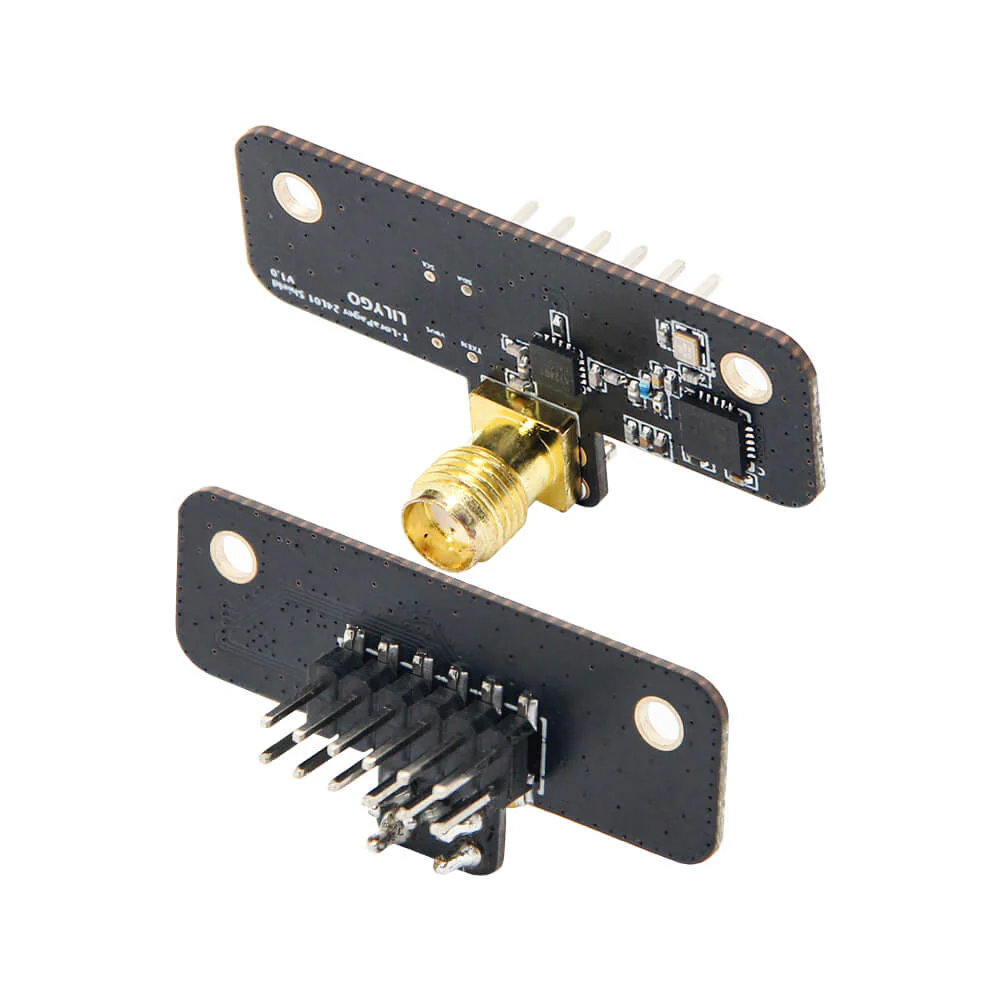

Shipping List of 24L01 2.4G Shield only :
