T-QT Pro

Specification

MCU	ESP32-S3FN4R2 Xtensa LX7 microprocessor
Wireless Connectivity	Wi-Fi 802.11 b/g/n, BL V5.0+BLE
Programming Platform	Arduino-ide, Micropython
Flash	4M
PSRAM	2M
Clock frequency	240Mhz
Onboard functions	IO00+IO47
Battery Detection	IO04

LCD: GC9107 TFT IPS LCD

LCD	Resolution: 128*128px
Support	4-Wire SPI interface
Display Area	15.2064(H)*15.2064(V)
Display Colors	262K
Brightness	260 cd/m2



Sample Code for Reference [Github]

If you need technical support please check the link to find more details.

T-QT Pro



What's the difference between T-QT Pro

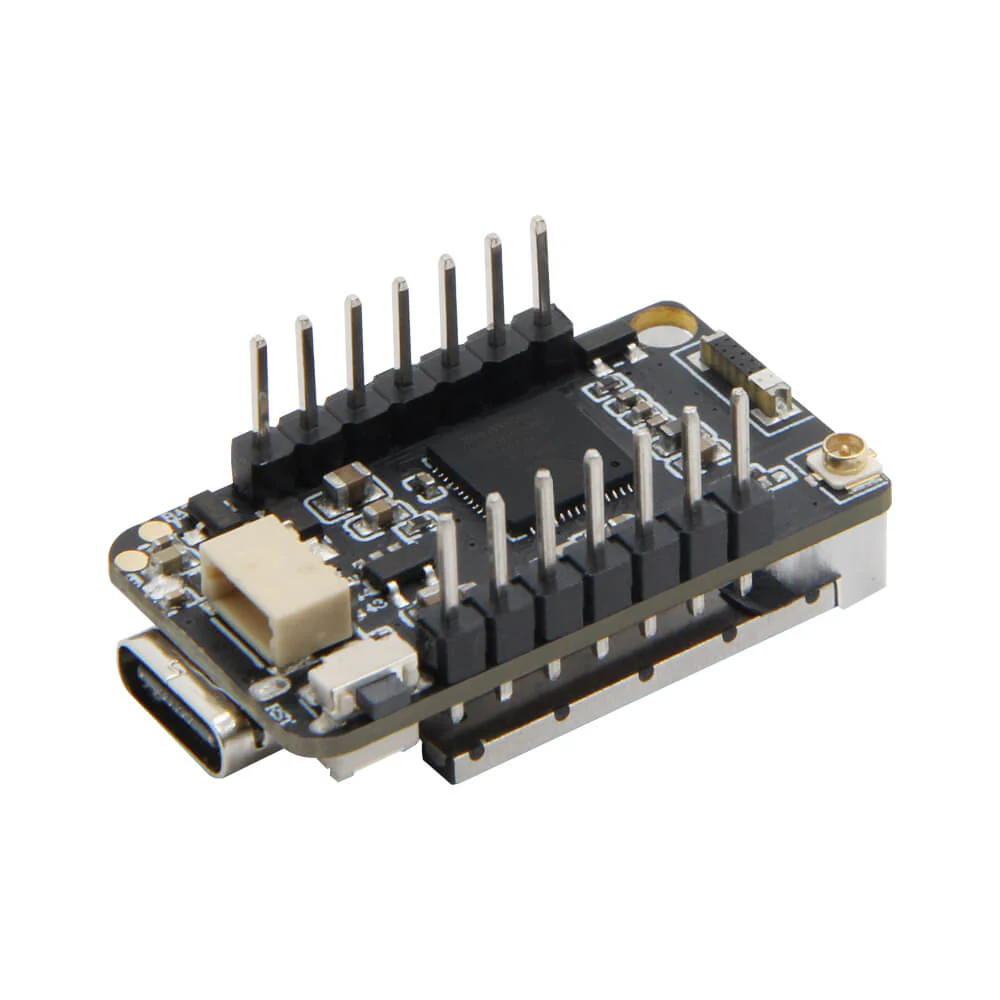

Version	S3FN8 Basic	S3FN8 Shell Version	S3FN4R2 Basic	S3FN4R2 Welded PIN	S3FN4R2 Shell
Chip Model	ESP32-S3FN8	ESP32-S3FN8	ESP32-S3FN4R2	ESP32-S3FN4R2	ESP32-S3FN4R2
Battery Charge	✔	✔	✔	✔	✔
Battery Discharge	✔	✔	✔	✔	✔
Flash	8M		4M
PSRAM	-		2M
LCD Driver	GC9A01
Screen Size	0.85 Inch LCD

1. Pin Diagram

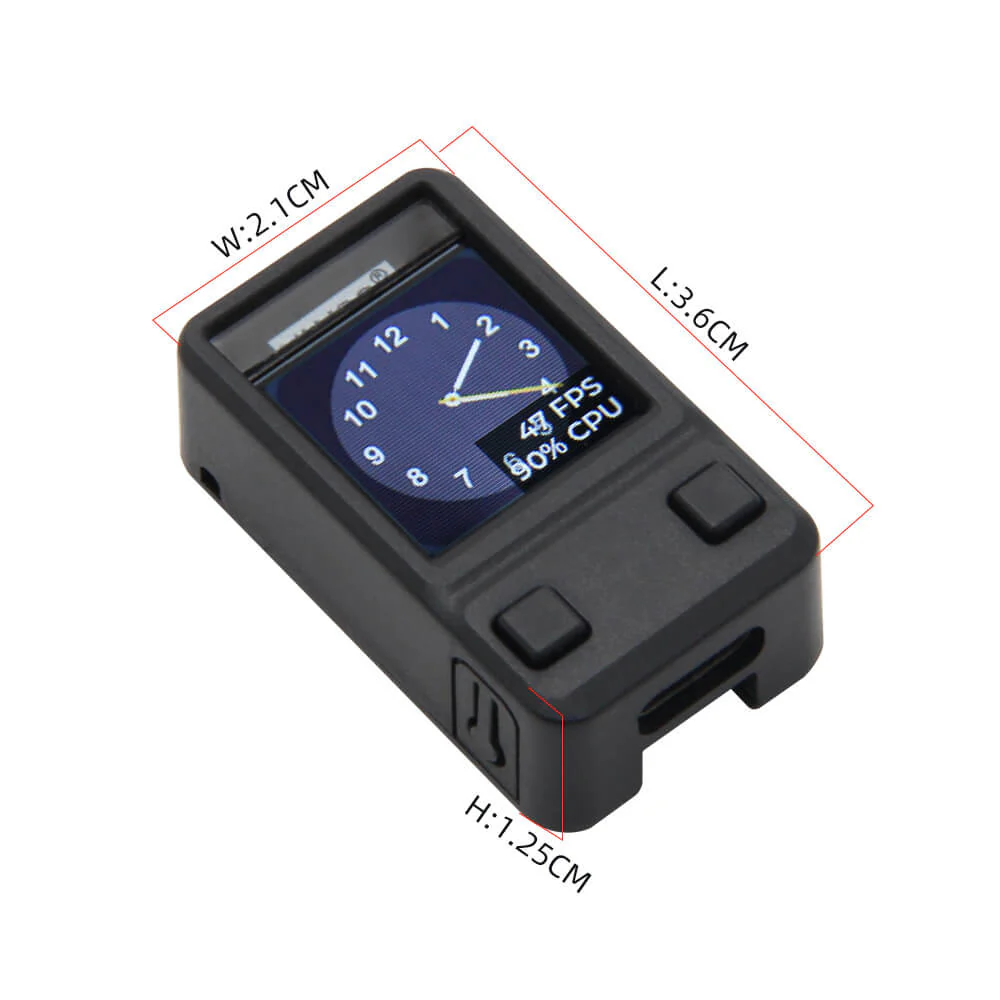

2. Size

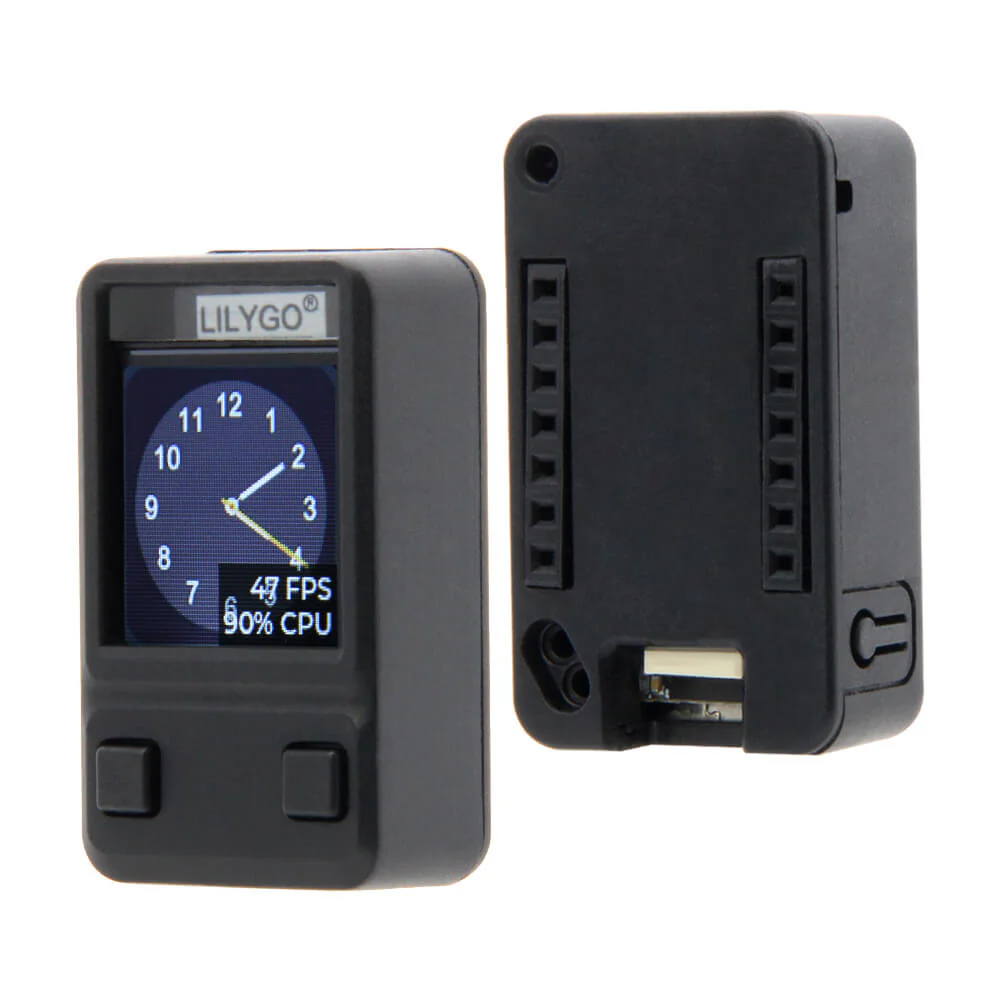

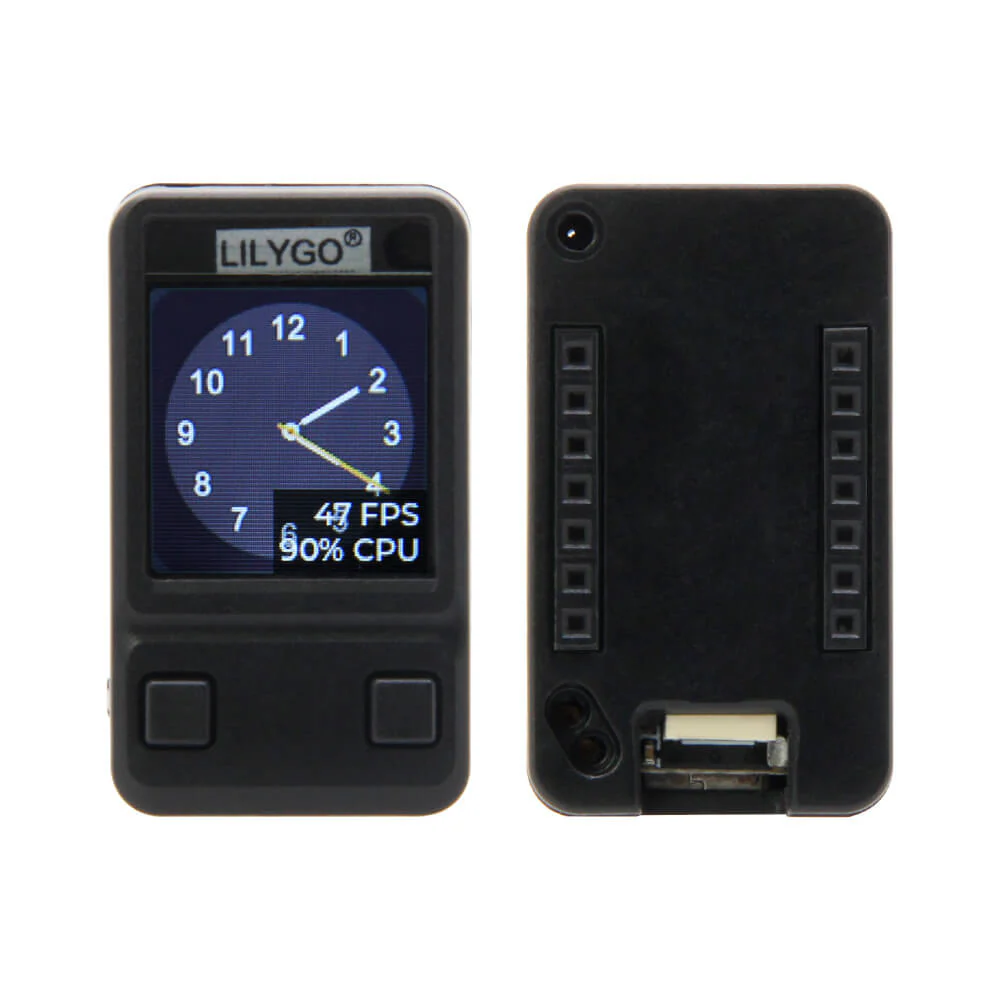

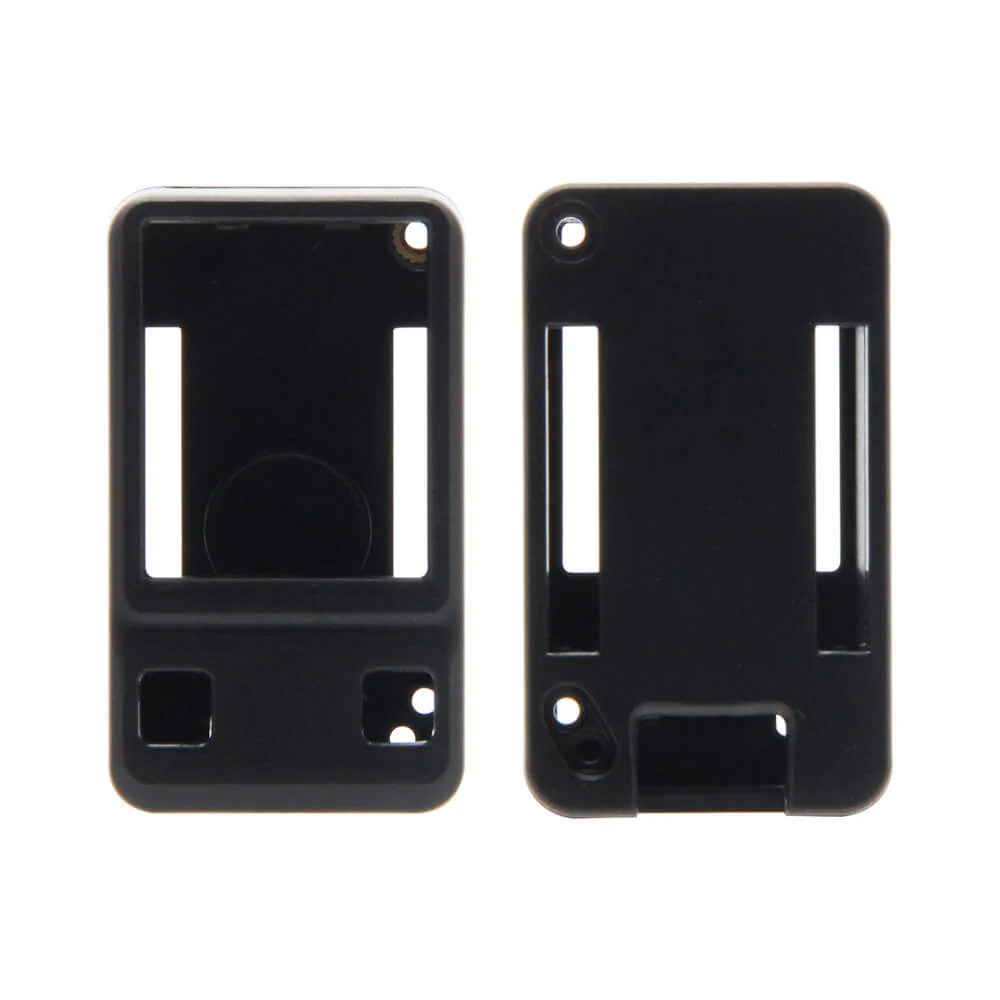

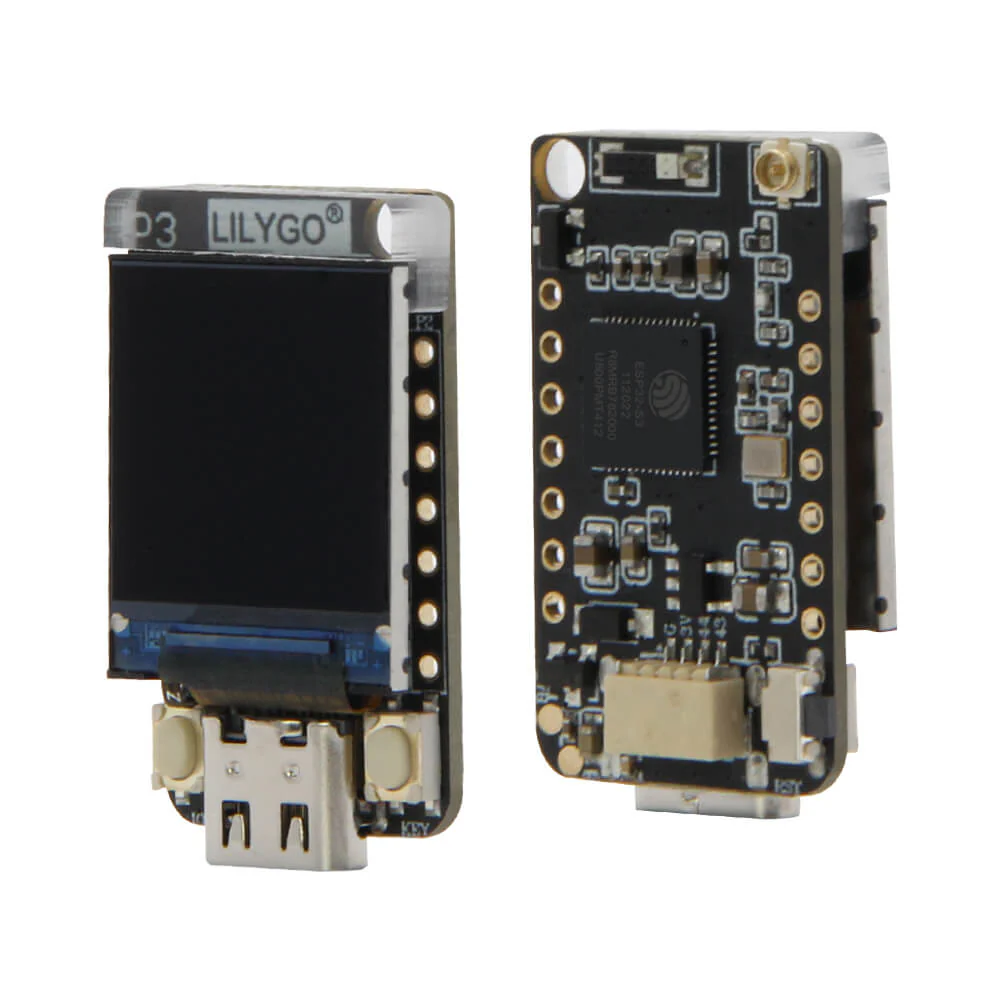

3. Appearance Details
