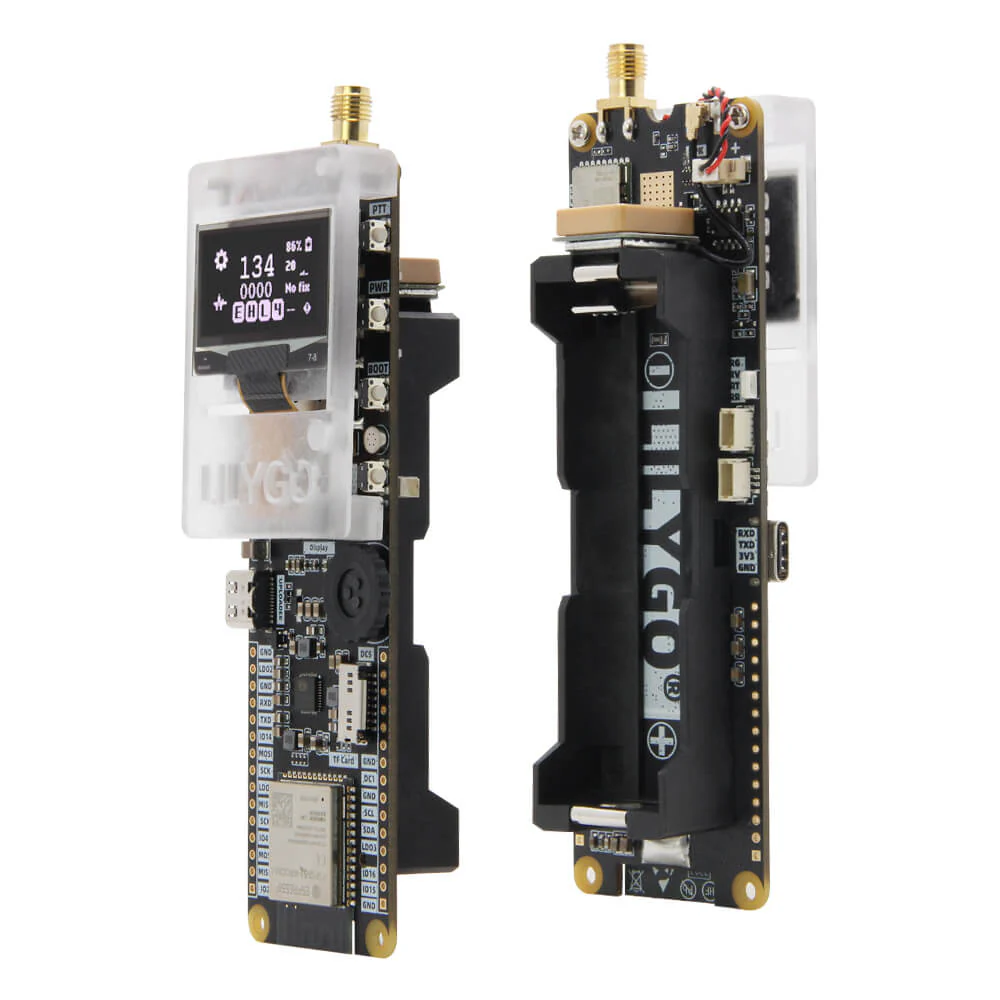

T-TWR Plus

T-TWR Plus is the ultimate development board for ambitious tech-enthusiasts. This board can achieve Walkie-Talkie functionality With integrated Wi-Fi, Bluetooth, and a SA868 Wireless Transceiver.

Currently, openrtx only supports version 2.0, not 2.1.

This series is currently not available for sale in mainland China.

该系列产品不可在中国大陆使用

Important Reminders

["UHF OpenEdition 400-480MHz" and "VHF OpenEdition 134-174MHz"
These two versions cannot be used directly for programming.
OpenEdtion used SA868 open-edition module, which internal Micro-controller is erased and left blank after the Factory QA test.
There is no published open-source firmware, so you cannot test the RF functionality directly on them, you need to develop it yourself or follow the progress of the open-source community.]

Specifications

MCU	ESP32-S3-WROOM-1-N16R8
Flash	16MB
PSRAM	8MB
Wireless protocol	Wi-Fi & Bluetooth 5 (LE)
Onboard functions	4 Buttons (PPT+Boot + PWR + Reset), PMU AXP2102, TF Card function, WS2812 RGB LED
Supply Mode	USB / 21700 battery / 18650 battery + spring
L76K GNSS Module	Support GPS, BDS, GLONASS Built-in LNA, SAW Filter, Support AGNSS and 1PPS

1.3 inch SH1106 OLED

Resolution	128x 64
I2C Interface	SDA--IO08 SCL--IO09
Display Color	2

Sample Code For Reference [Github]

If you need technical support please check the below link to find more details

1. T-TWR Plus (LILYGO)

Other Support

1. SoftRF Ham Edition
2. OpenRTX for T-TWR Plus
3. ESP32APRS
4. ArcticTracker

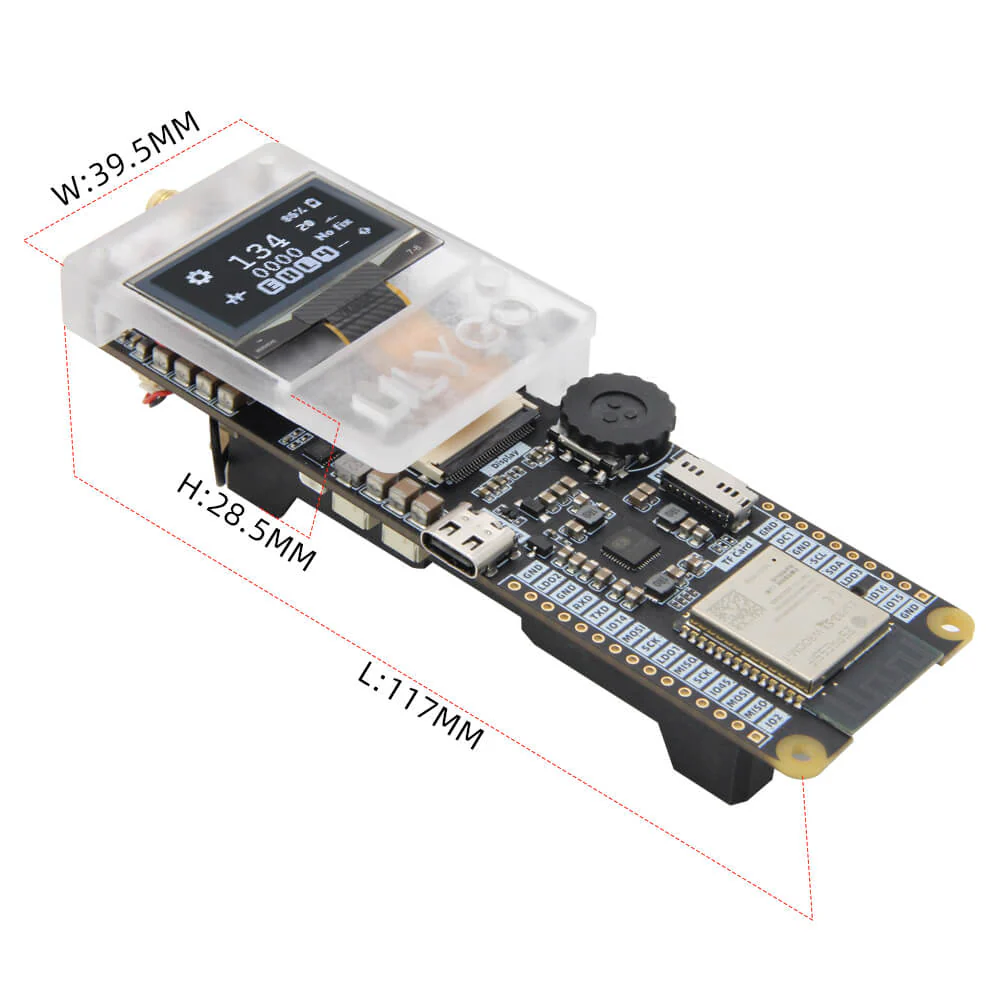

Size

Pin Diagram

More

UHF 400-480MHz

• 1 X T-TWR Plus UHF
• 1 X U band antenna: 400-480MHz
• 2 X (1 * 15pin 2.54mm)
• 1 X 4pin 2.54 Dupont cable 1.0mm connector
• 1 X Spring

VHF 134-174MHz

• 1 X T-TWR Plus VHF
• 1 X V band antenna: 134-174MHz
• 2 X (1 * 15pin 2.54mm)
• 1 X 4pin 2.54mm DuPont cable 1.0mm connector
• 1 X Spring
