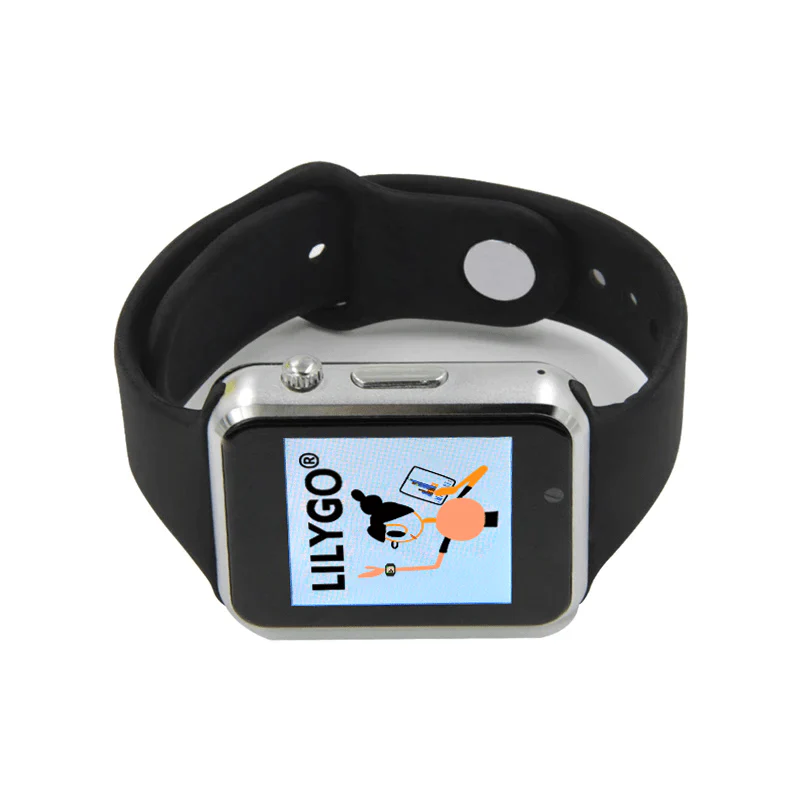

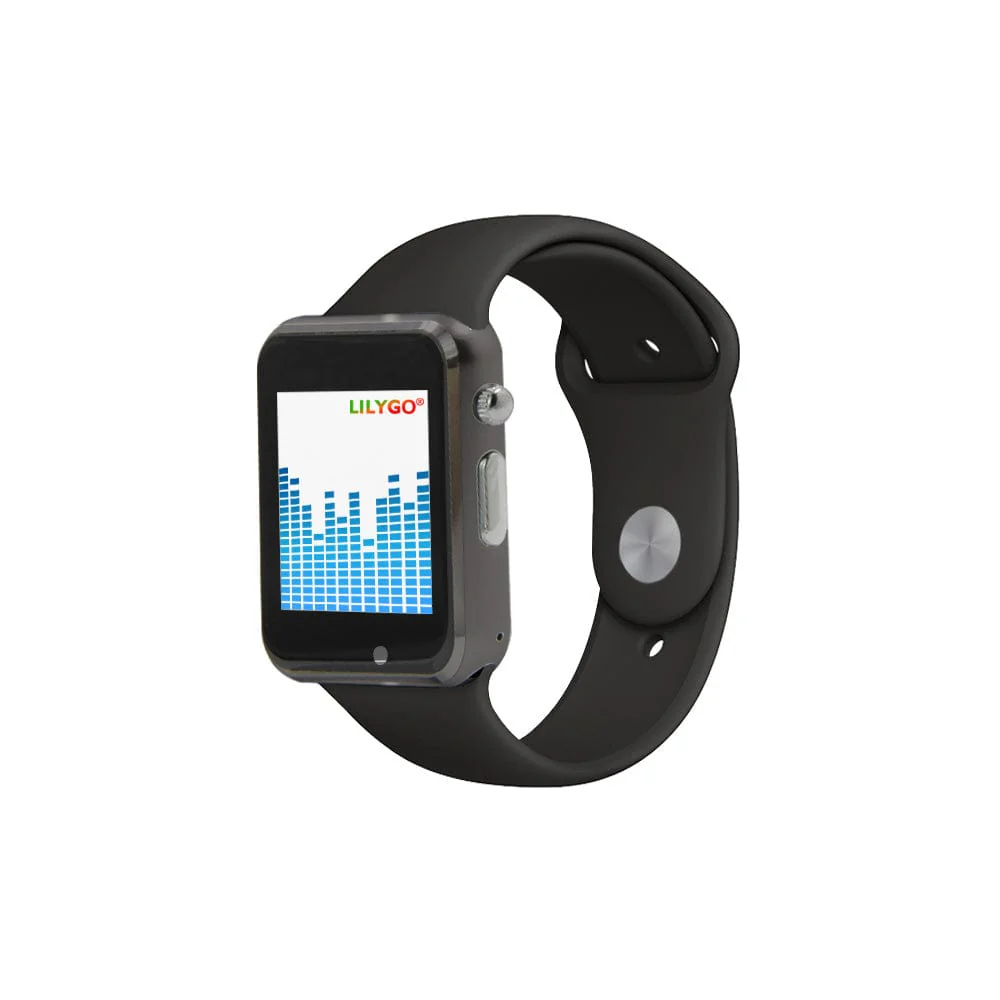

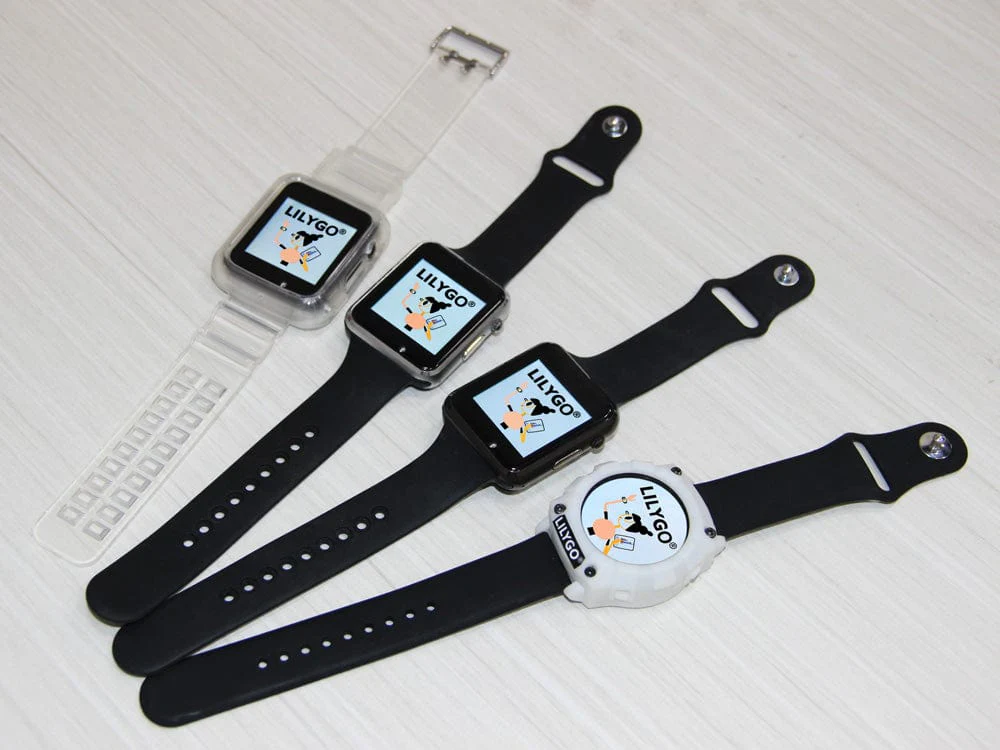

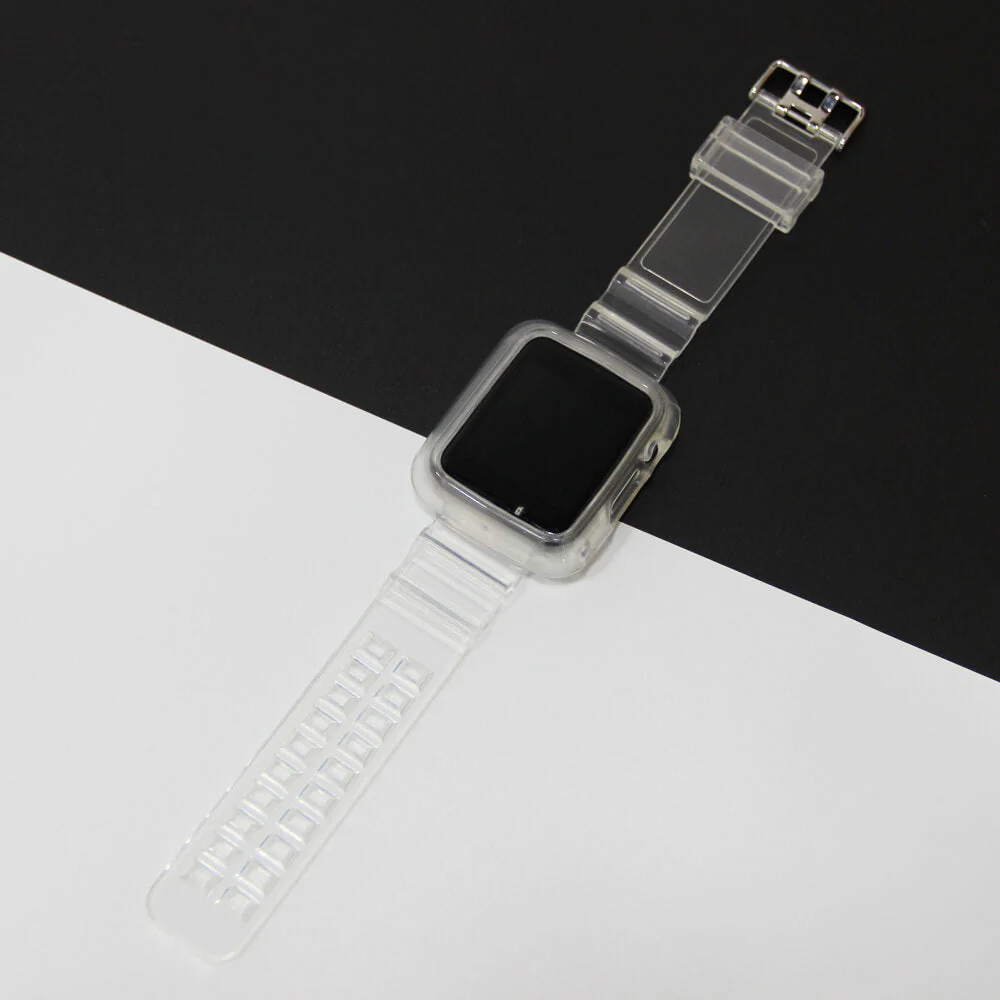

T-Watch S3
Specifications
| MCU | ESP32-S3 |
| FLASH | 16MB |
| PS RAM | 8MB |
| Platform | Arduino-IDE, ESP-IDF, VS Code, Micropython |
| Wireless |
Wi-Fi: 802.11 b/g/n Bluetooth: BLE V5.0 |
| Onboard Functions | RTC, Microphone, MAX98357A,Ā Power Detection, BMA423 3-axis acceleration sensor |
| DRV2605 | Haptic Driver Motor for ERM and LRA |
| AXP2101 | Highly Integrated Power Management Unit |
| Ā SX1262 Low Power LoRa Transceiver Support Baud: 433Mhz, 868Mhz, 915Mhz |
Sample Code For ReferenceĀ [Github]
If you need technical support please check the below link to find more details.
T-Watch_S3
T-WATCH-2020 document
Micropython ESP32 Firmware Download Address
Tip: YouĀ need to turn on the switch whenĀ youĀ turn it onĀ for theĀ first time, and it is recommended to turn off the battery switch when it is not used for a long time.

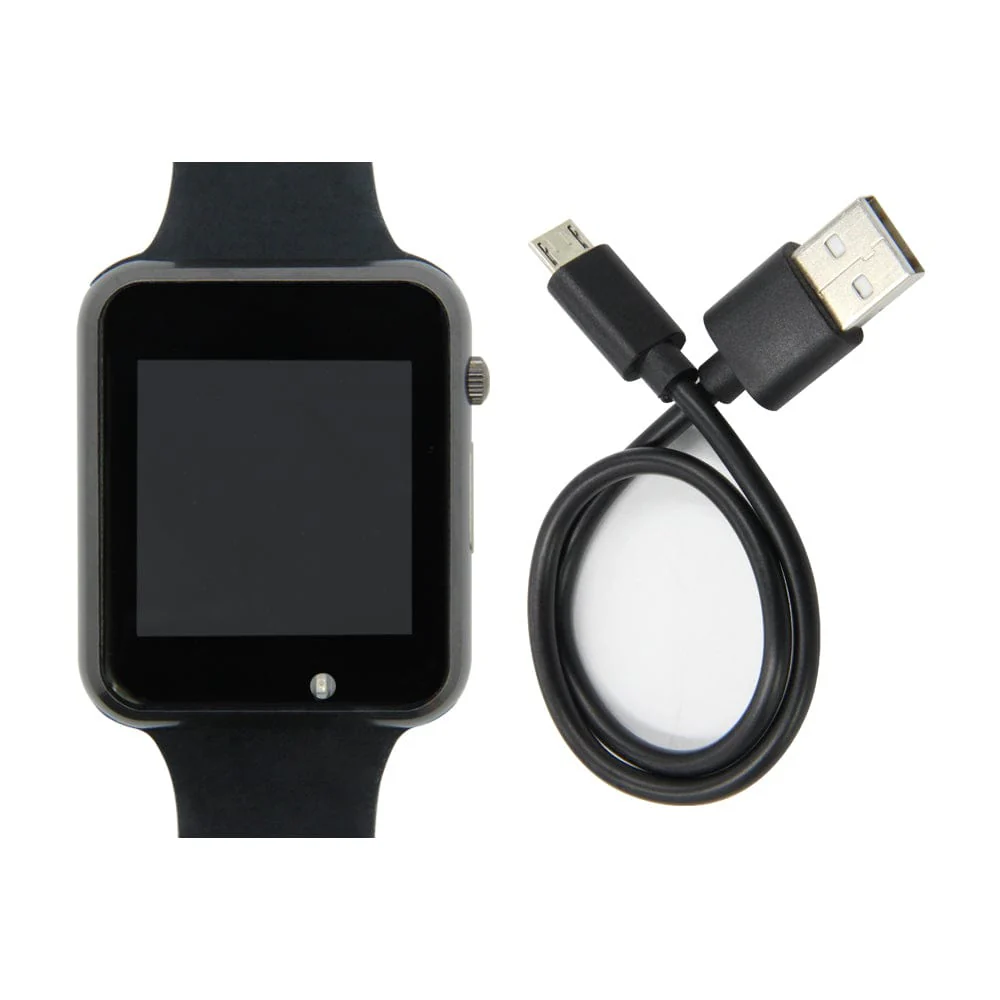

- 1 X T-Watch
- 1 X Cable
Original: $2.59
-65%$2.59
$0.91Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specifications
| MCU | ESP32-S3 |
| FLASH | 16MB |
| PS RAM | 8MB |
| Platform | Arduino-IDE, ESP-IDF, VS Code, Micropython |
| Wireless |
Wi-Fi: 802.11 b/g/n Bluetooth: BLE V5.0 |
| Onboard Functions | RTC, Microphone, MAX98357A,Ā Power Detection, BMA423 3-axis acceleration sensor |
| DRV2605 | Haptic Driver Motor for ERM and LRA |
| AXP2101 | Highly Integrated Power Management Unit |
| Ā SX1262 Low Power LoRa Transceiver Support Baud: 433Mhz, 868Mhz, 915Mhz |
Sample Code For ReferenceĀ [Github]
If you need technical support please check the below link to find more details.
T-Watch_S3
T-WATCH-2020 document
Micropython ESP32 Firmware Download Address
Tip: YouĀ need to turn on the switch whenĀ youĀ turn it onĀ for theĀ first time, and it is recommended to turn off the battery switch when it is not used for a long time.
- 1 X T-Watch
- 1 X Cable
