T-Wrist E-paper 1.54 Inch Display

Specifications

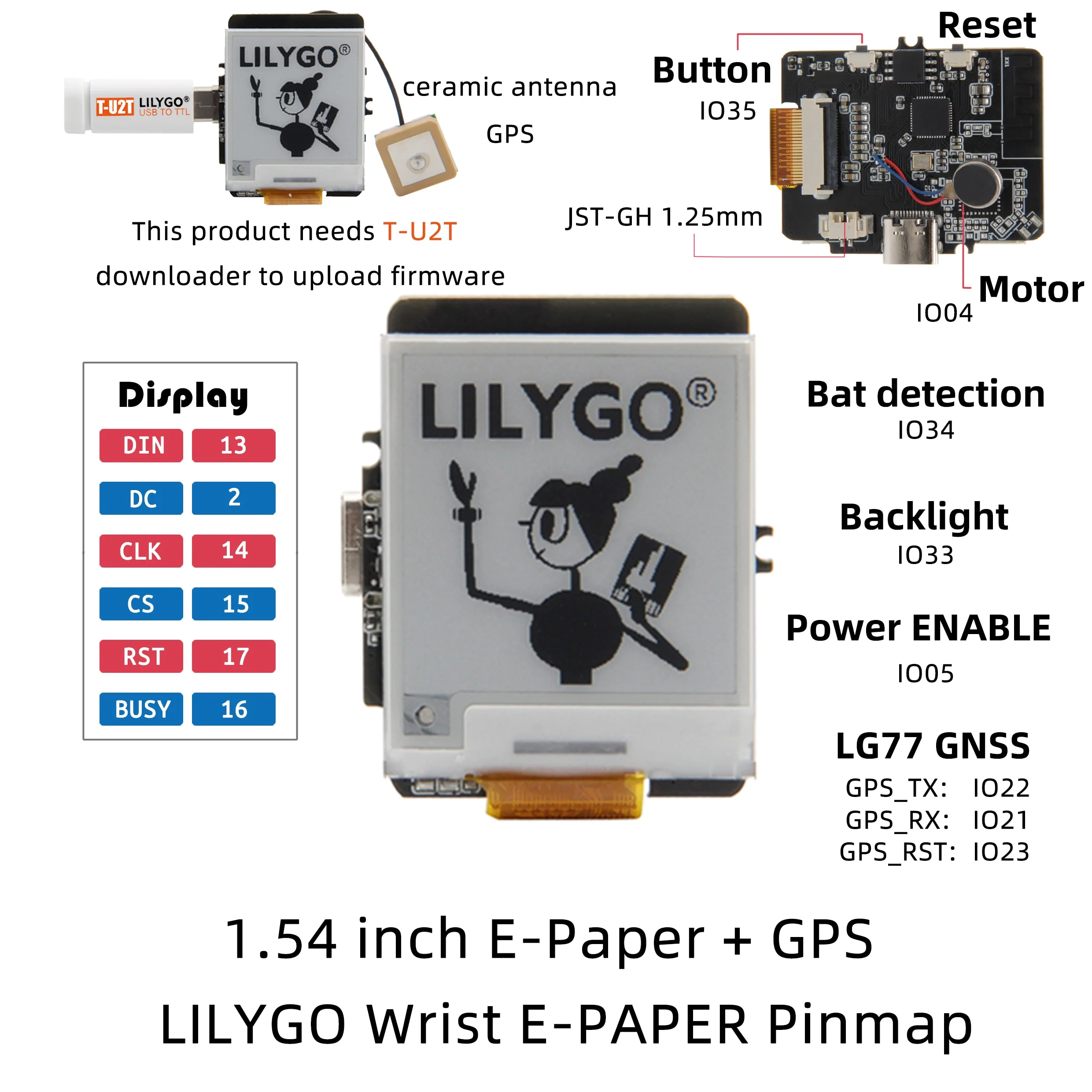

MCU	ESP32
FLASH	4MB
Bus Interfaces	UART , SPL , 12C , CAN , 12S , SDIO
Wireless Connectivity	Wi-fi , Bluetooth V4.2
Optional version	Basic / GNSS / Backlight
Onboard functions	Buttons : RST + 1035 , battery power detection
1 . 54 Inch SPI E-paper Display	Grey level : 2
Resolution	200x200
Full refresh time	2s
Vibrating DC Motor	Strong vibration , low noise , fast speed
LG77 GNSS module	supports GPS , GLONASS , Beidou

Support T-U2T Flash Download Tool  Computer- > USB Type-c data cable- > Ezi uncoCan be connected to use T-U2T USB toserial downloader , convenient , fast and safe



Technical support

If you need technical support, check out the links for more details.

Github link

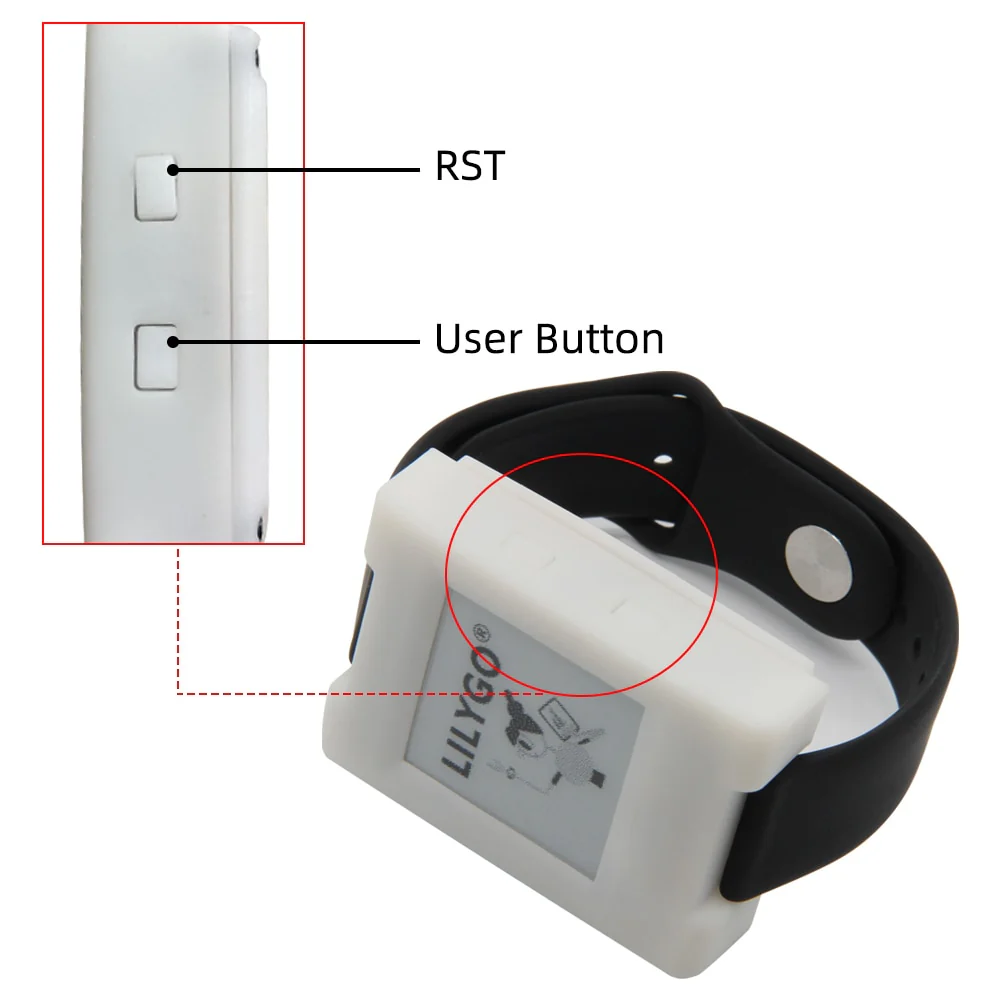

3D printing shell, the product does not have a shell; if necessary, you can print it yourself.

3D printing shell

3D printing shell, the product does not have a shell; if necessary, you can print it yourself.

https://github.com/Xinyuan-LilyGO/E-Paper-watch/tree/main/3D_file

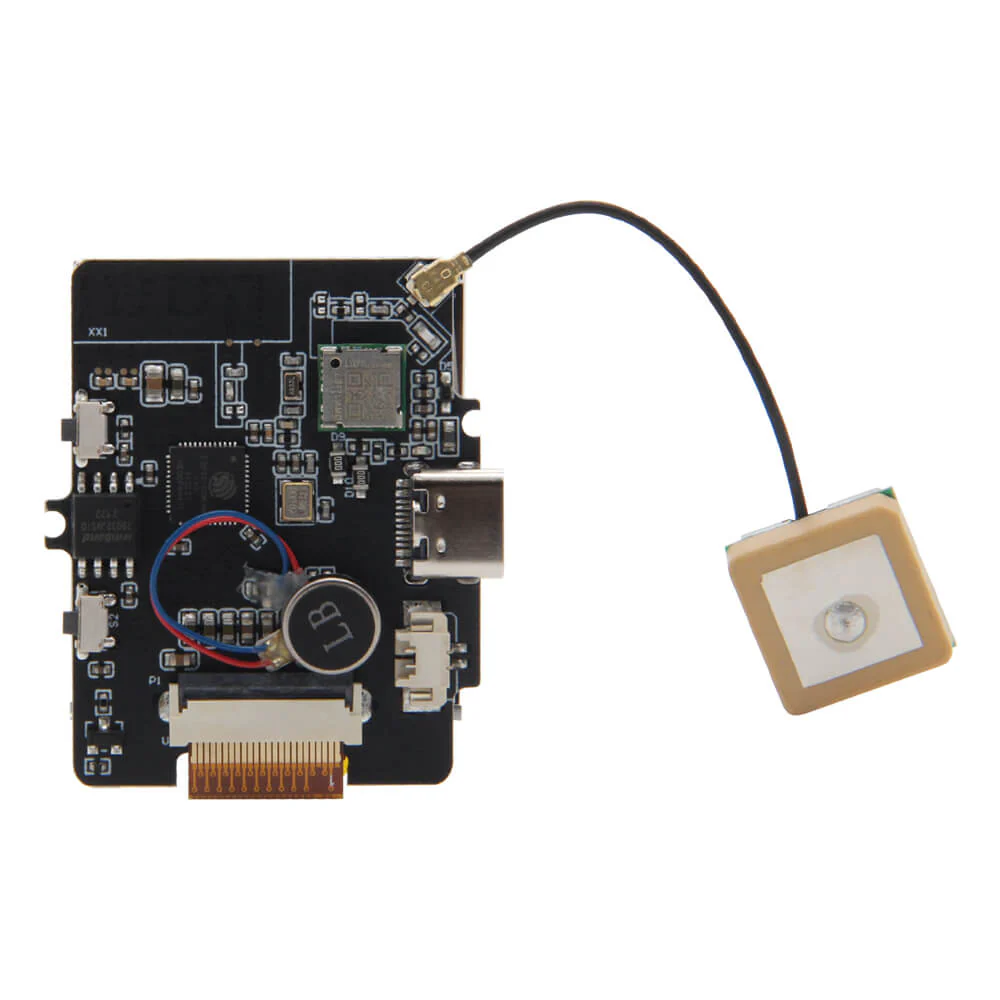

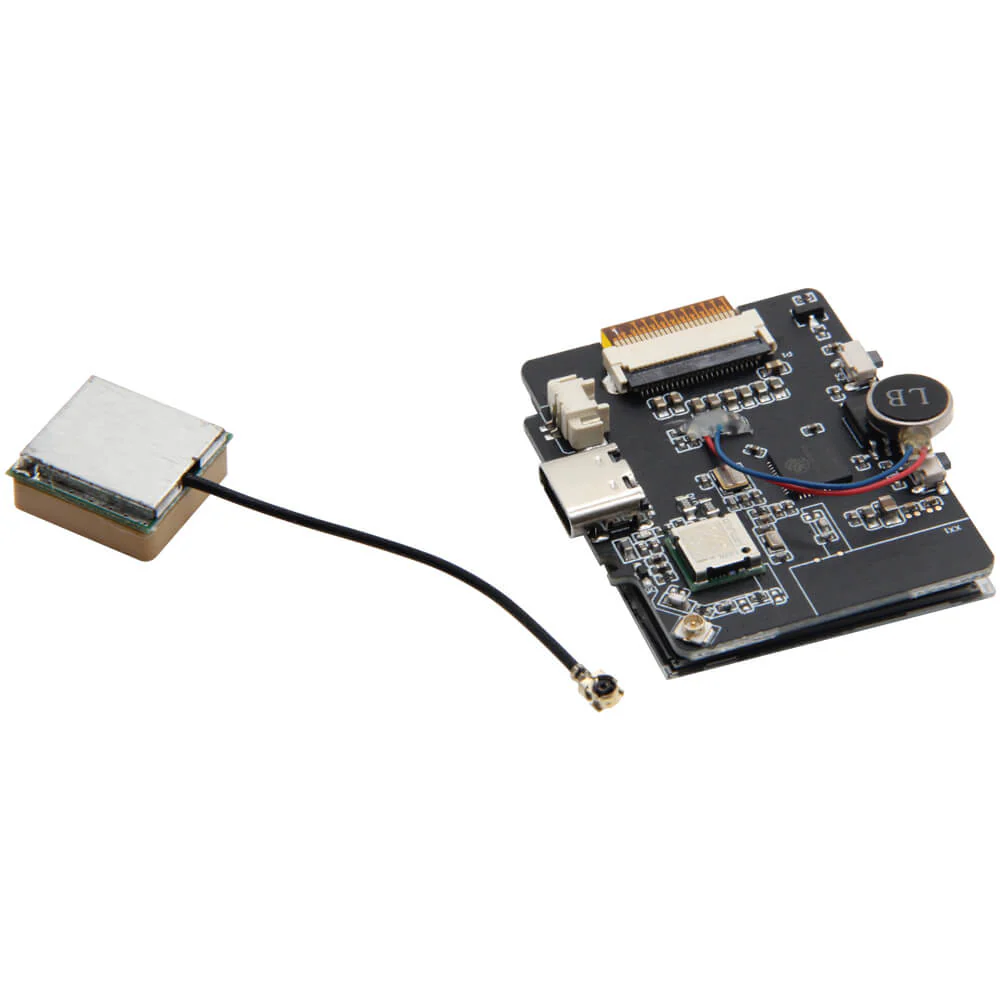

1.54 Inch Wrist E-paper GPS Options:

• 1 X 1.54 Inch Wrist E-paper

• 1 X GPS Antenna

• 1 X Power Cord (JST 1.25mm 2P)

• 1 X Type-C USB Cable

1.54 Inch Wrist E-paper GPS+T-U2T Options:

• 1 X 1.54 Inch Wrist E-paper

• 1 X GPS Antenna

• 1 X Power Cord (JST 1.25mm 2P)

• 1 X Type-C USB Cable

• 1 X T-U2T
